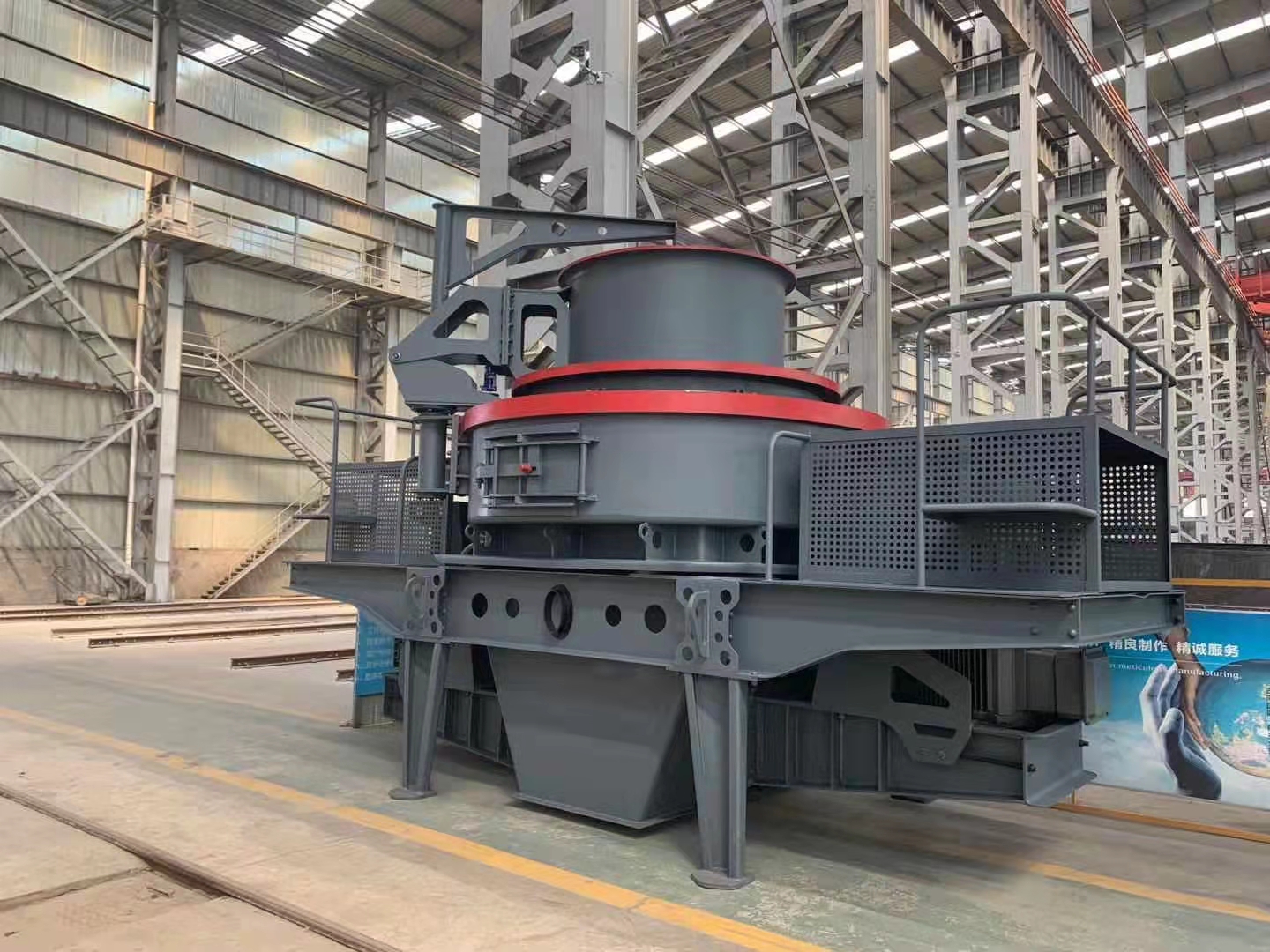

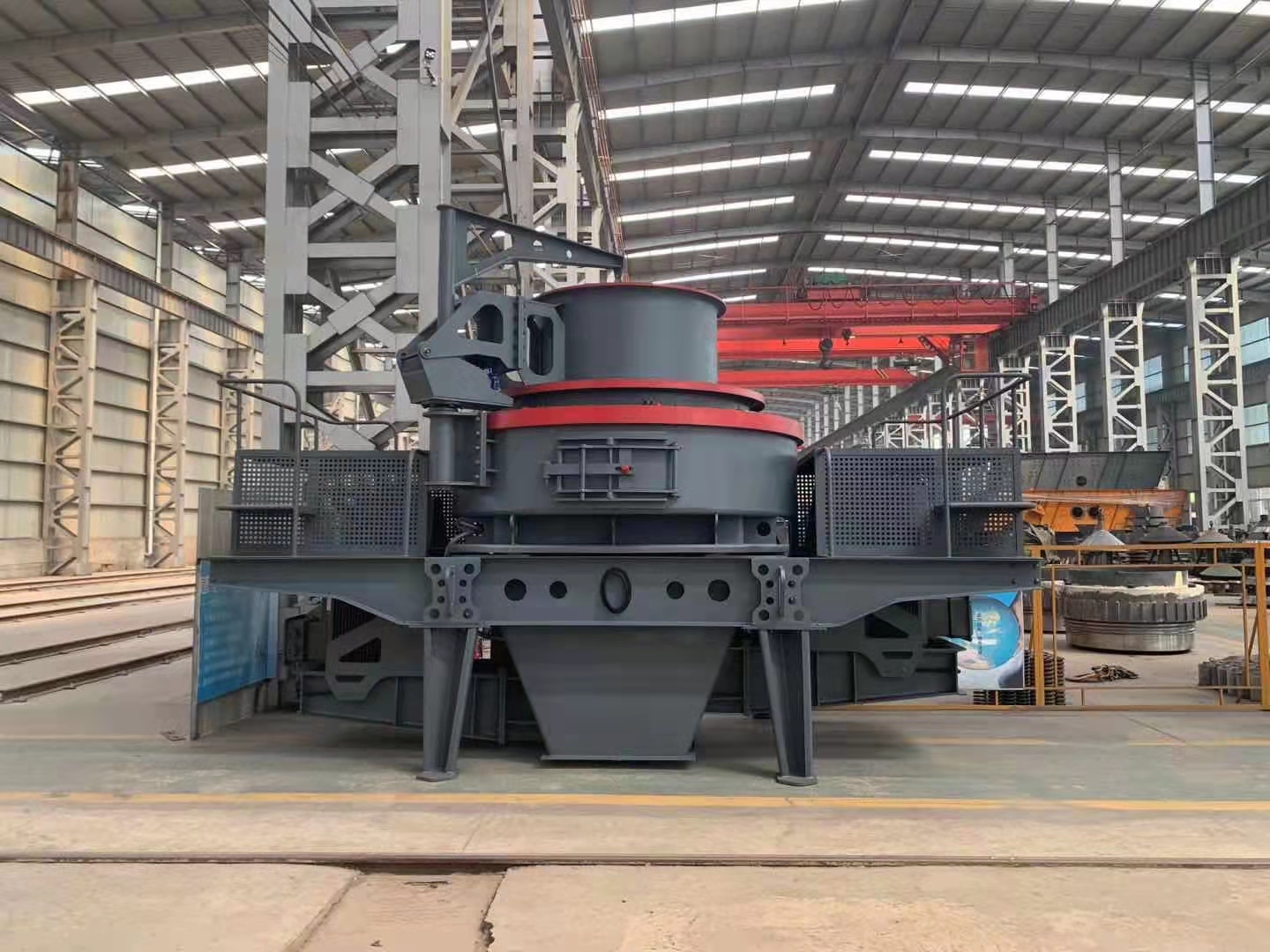

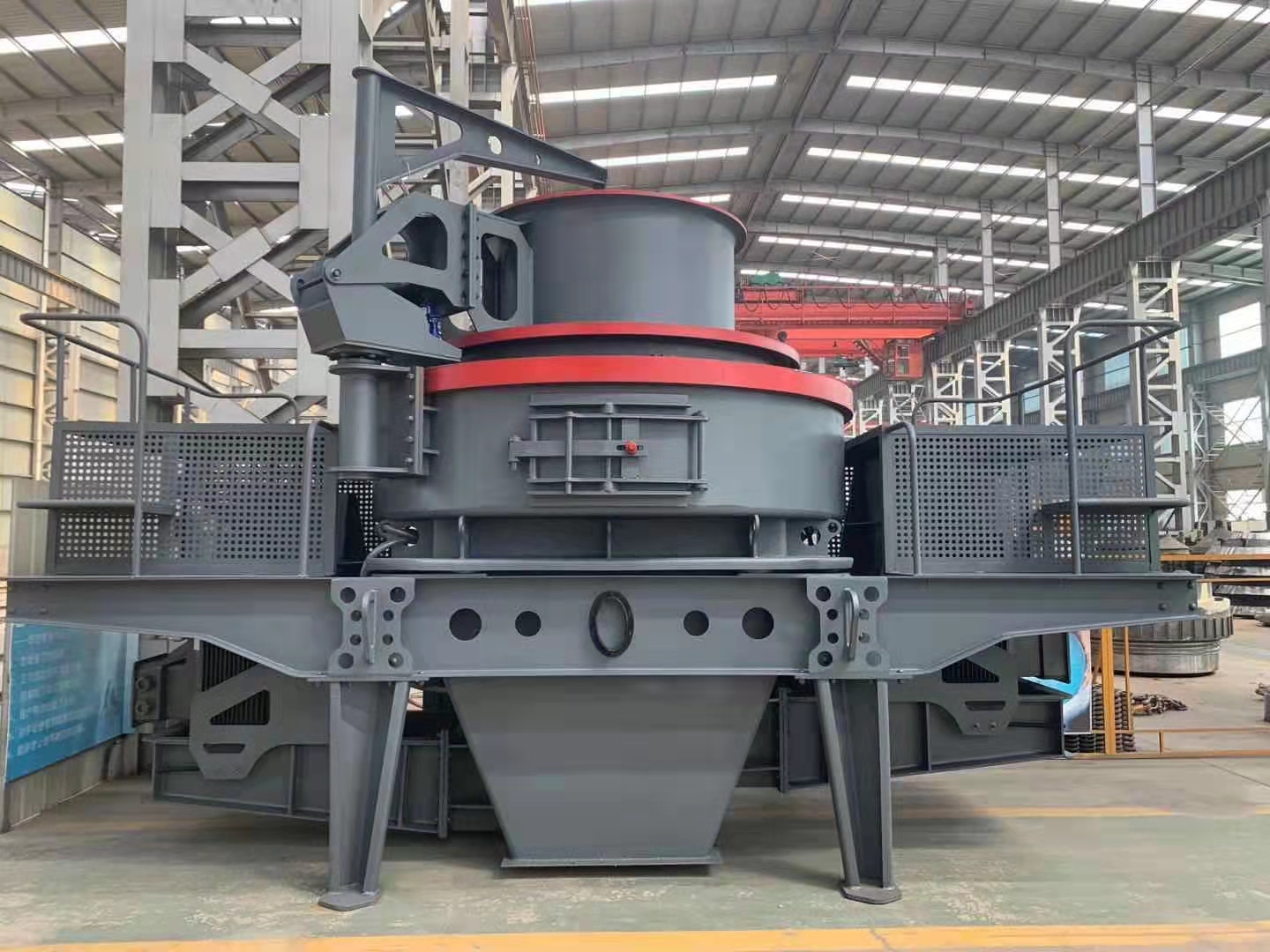

VSI6X Impact Crusher

Free consultation and whole process teaching assistance in installation
Buyer Promotion: 50-200$ Coupons (April-June 2021)

throughput : 60-520t/

application area : <60mm

Applicable materials : Pebbles, river pebbles, basalt, granite, quartzite, diabase, cement clinker and other hard and brittle materials.


  • CMC

  • CPA

  • CNEX

  • ISO
Get Quotation Send E-mail Send E-mail: tuobaomac@163.com

  VSI6X Series Vertical Shaft Impact Crusher is a newly-developed and highly-efficient stone-crushing and sand-making machine with many national patent technologies. This machine adopts years of research and development experience and technical philosophy. Technologies such as new design of four opening impeller structure and special seal structure, which can prevent oil leak from bearing cylinder, are adopted.


Working principle

  When entering into impeller, the raw material can be crushed directly by hitting impact plate after it is accelerated and threw out. The raw material can also be divided into two parts by material-dividing plate. One falls down from all around. The other enters into impeller and is accelerated, threw out and collides with the falling material and hit, rebound with impact plate. The circulation hits repeats. As the crushing is moving forward, small particle materials will gradually form a material bed around the impact plate which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards though outlet finally.


Advantage

1.New design, efficient crushing;

2.Technology upgrade, cost decreasing and benefit increasing;

3.Unique design, quality assurance;

4.Efficient working, easy maintenance;


Specifications

Model






VSI6X1263

VSI6X1150

VSI6X1040

VSI6X9026

VSI6X8018

Central feeding(t/h)

Crushing

454-486

344-368

264-283

109-117

109-117

Re-Shaping

545-583

413-442

317-342

131-140

131-140

Maximum(mm)

Crushing

≤50

≤45

≤40

≤35

≤30

Re-Shaping

≤60

≤55

≤50

≤45

≤40

Main shaft speed(r/min)

900-1200

1000-1300

1100-1400

1200-1500

1300-1700

Power(kW)

315×2

250×2

200×2

132×2

90×2
