European jaw crusher
Free consultation and whole process teaching assistance in installation
throughput ： 65-1275t/h
application area ： <800mm
Applicable materials ： River pebbles, cobbles, quartzite, limestone, basalt, granite, marble, iron ore, construction waste, etc.
CMC
CPA
CNEX
ISO

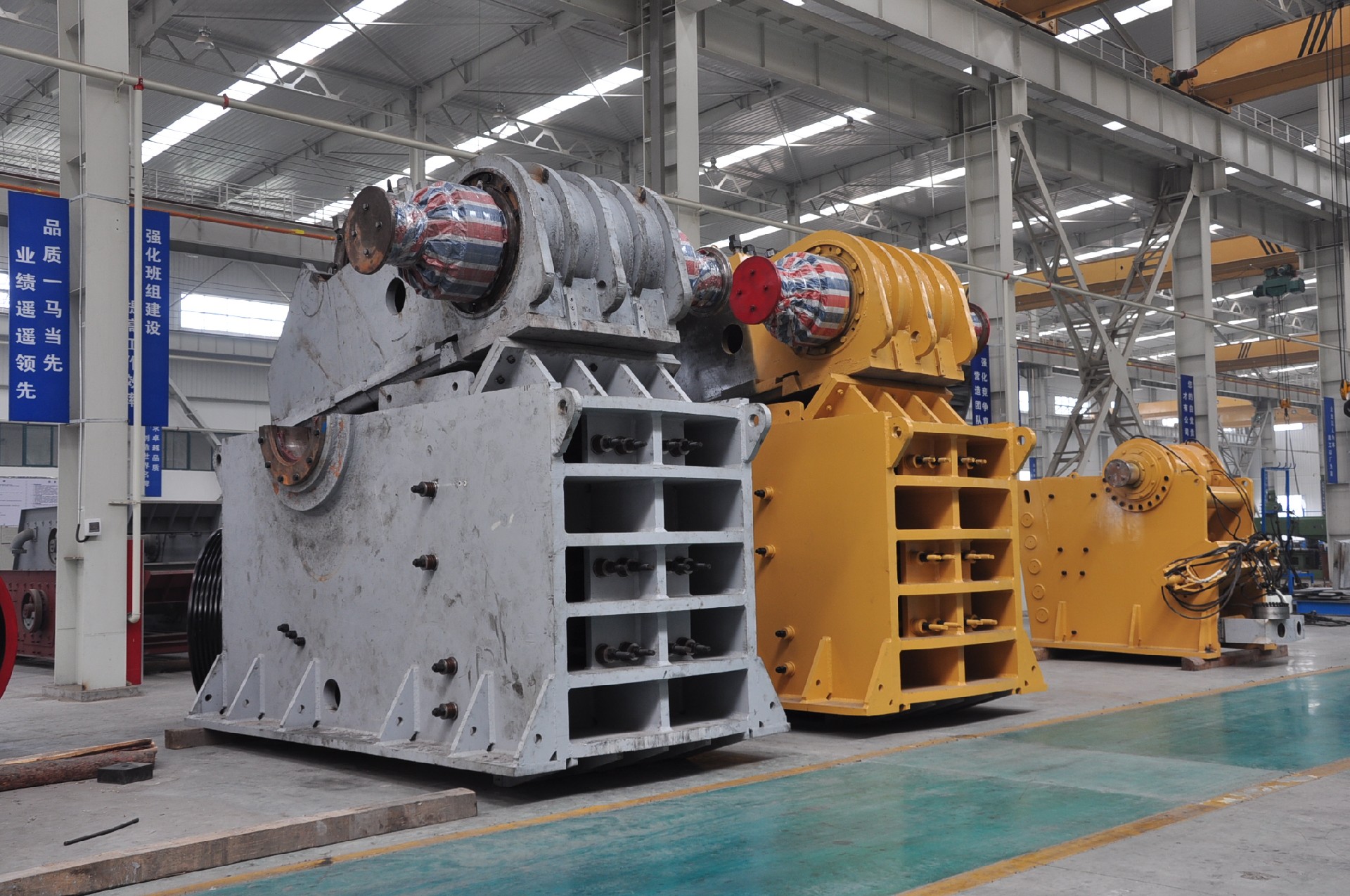

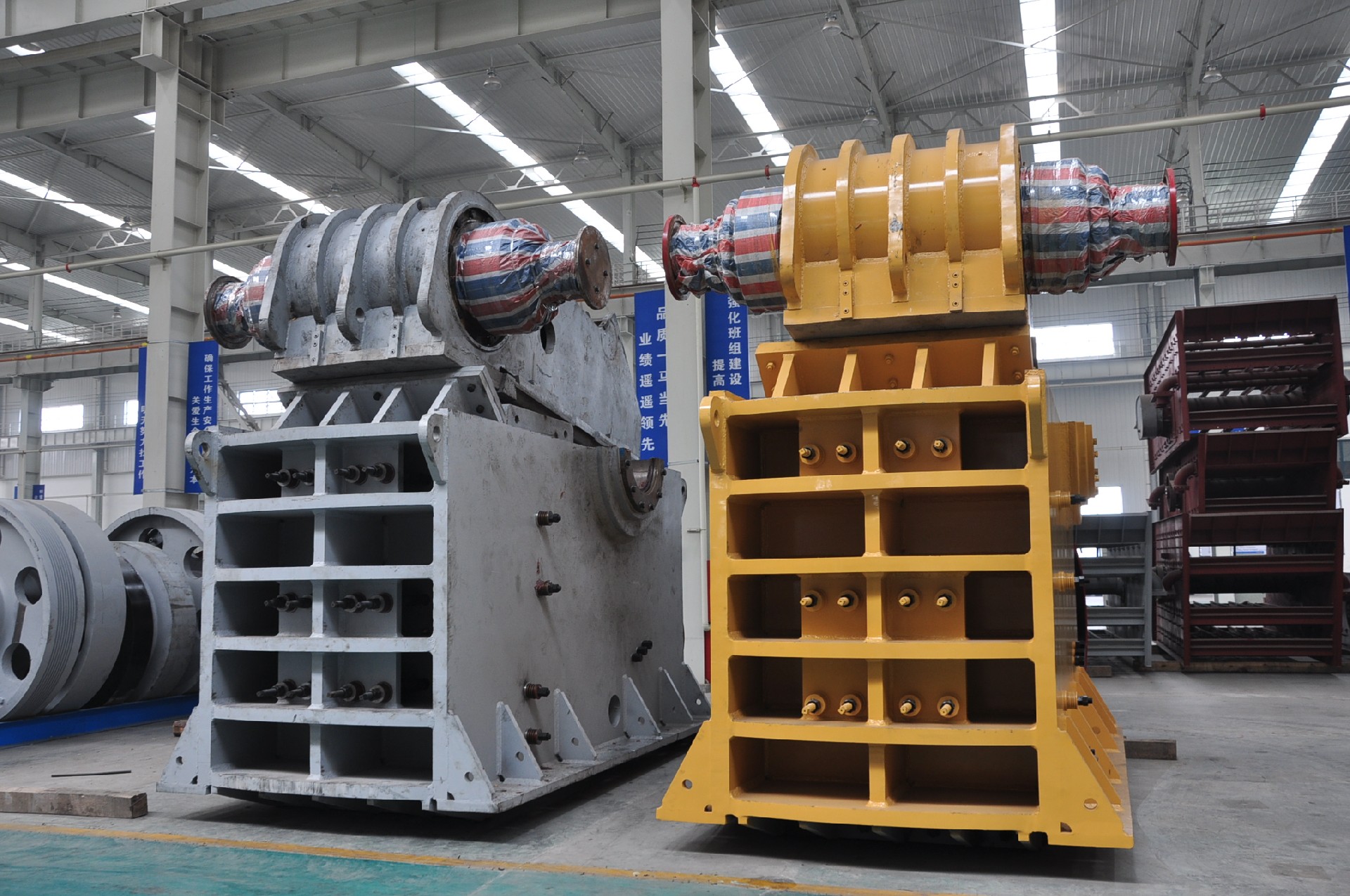

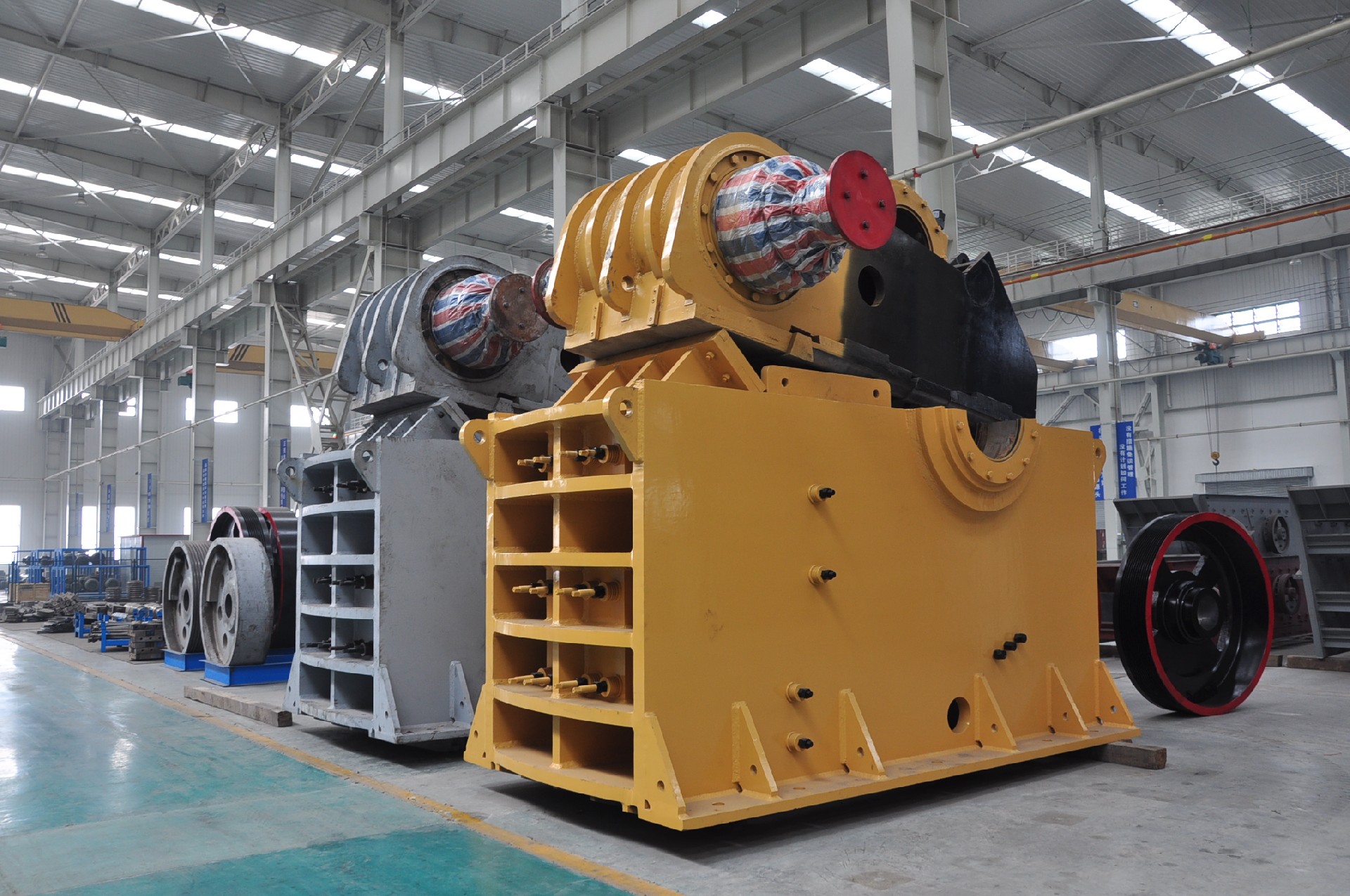

As an important equipment for coarse crushing in the crushing process, European jaw crusher is one of our core products, and it is also a product with a long production history. Over the years, we have been focusing on the R & D and manufacturing of high-performance crushers. With the support of several customers on site, our products have undergone several iterations and upgrades. In addition, we have introduced more advanced European technology to condense the European jaw crusher which is currently at a high level in the market. The European version jaw crusher adopts an innovative modular, non welded structure frame, high-quality alloy steel castings and rolling bearings, which greatly improves the fatigue resistance and operation reliability of the equipment, and fully ensures the high production, high efficiency and low cost of crushing operation; A variety of flexible installation methods can meet different application options.
Working principle
The working mode of the European version jaw crusher is the bending extrusion type. Its working principle is: the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.
Advantage
1. deep cavity crushing, energy-saving optimized deep cavity crushing, without dead corners, greatly improved feeding capacity and crushing efficiency, 15%-30% energy saving for single machine and more than twice the energy saving for the system.
2. advanced technology and large crushing force. Advanced crushing technology and digital processing equipment are adopted, with precise internal structure and enhanced crushing capacity.
3. convenient maintenance and improved production efficiency. The equipment adopts grease centralized lubrication system, which is safe and reliable, convenient and fast maintenance, and reduces downtime and maintenance time.
4. green, low noise, equipped with dust removal device, reduce dust generation, reduce pollution, and strictly comply with national environmental protection standards.
Specifications
model | Feed port size(mm) | yield(t/h) | power(kw) | Special for fixed line |
SC80 | 800X510 | 65-380 | 75 | |
SC100 | 1000X760 | 150-545 | 110 | |
SC110 | 1100X850 | 190-625 | 160 | |
SC125 | 1250X950 | 290-845 | 160 | |
SC140 | 1400X1070 | 385-945 | 200 | |
SC160 | 1600X1100 | 520-1275 | 250 | |
SC96 | 930X580 | 120-455 | 90 | Mobile broken dedicated |
SC106 | 1060X700 | 155-580 | 110 | |
SC116 | 1150X800 | 170-600 | 132 | |
SC120 | 1200X870 | 303-529 | 160 |
