MTW Trapezium Mill

Free consultation and whole process teaching assistance in installation
Buyer Promotion: 50-200$ Coupons (April-June 2021)

throughput : 0.4-15t/h

application area : 0.2-0.044mm

Applicable materials : Raymond mill is suitable for small and medium-sized mines, chemical industry, building materials, metallurgy, refractory, glass, cement and other industries


  • CMC

  • CPA

  • CNEX

  • ISO
Get Quotation Send E-mail Send E-mail: tuobaomac@163.com

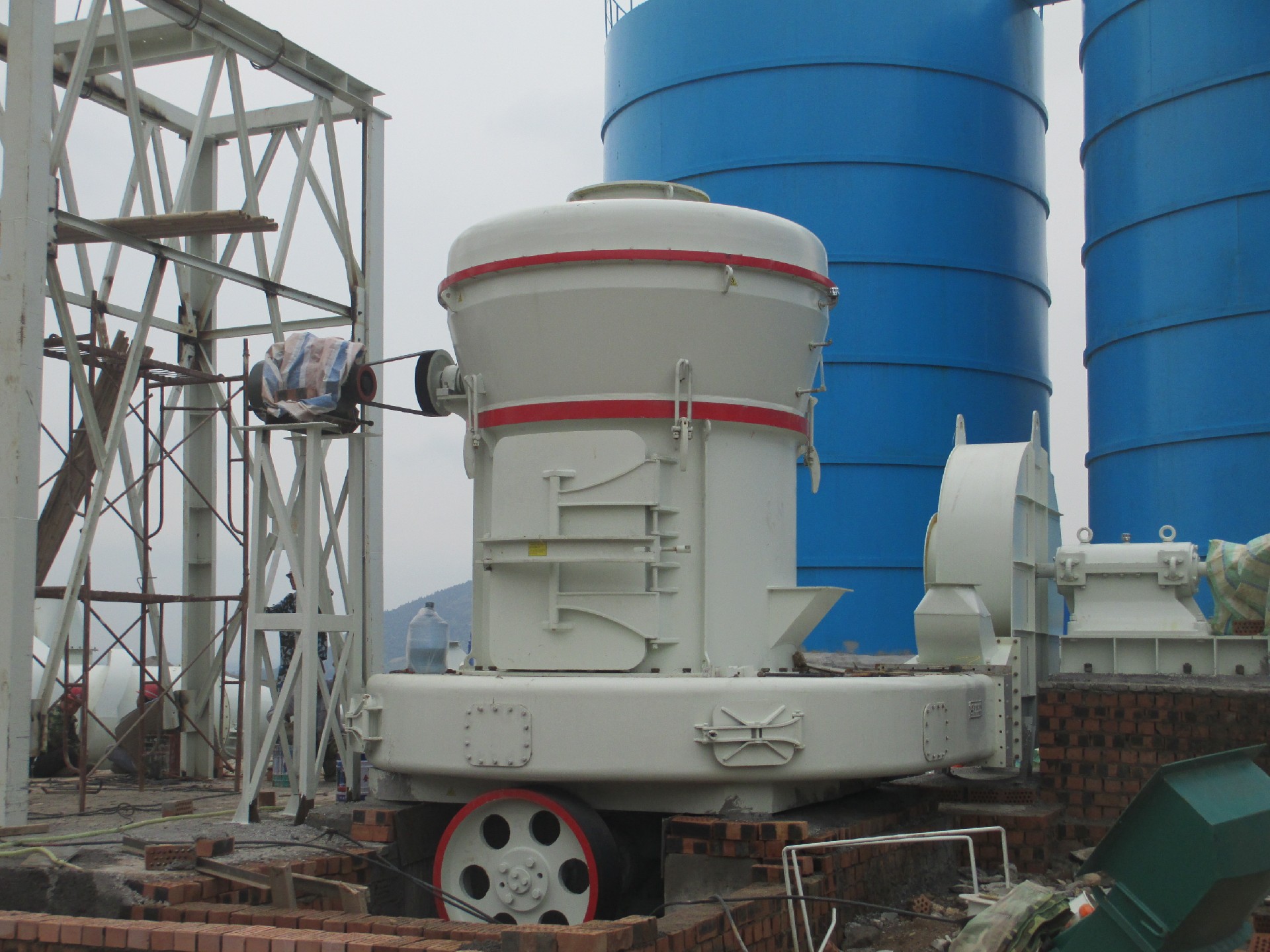

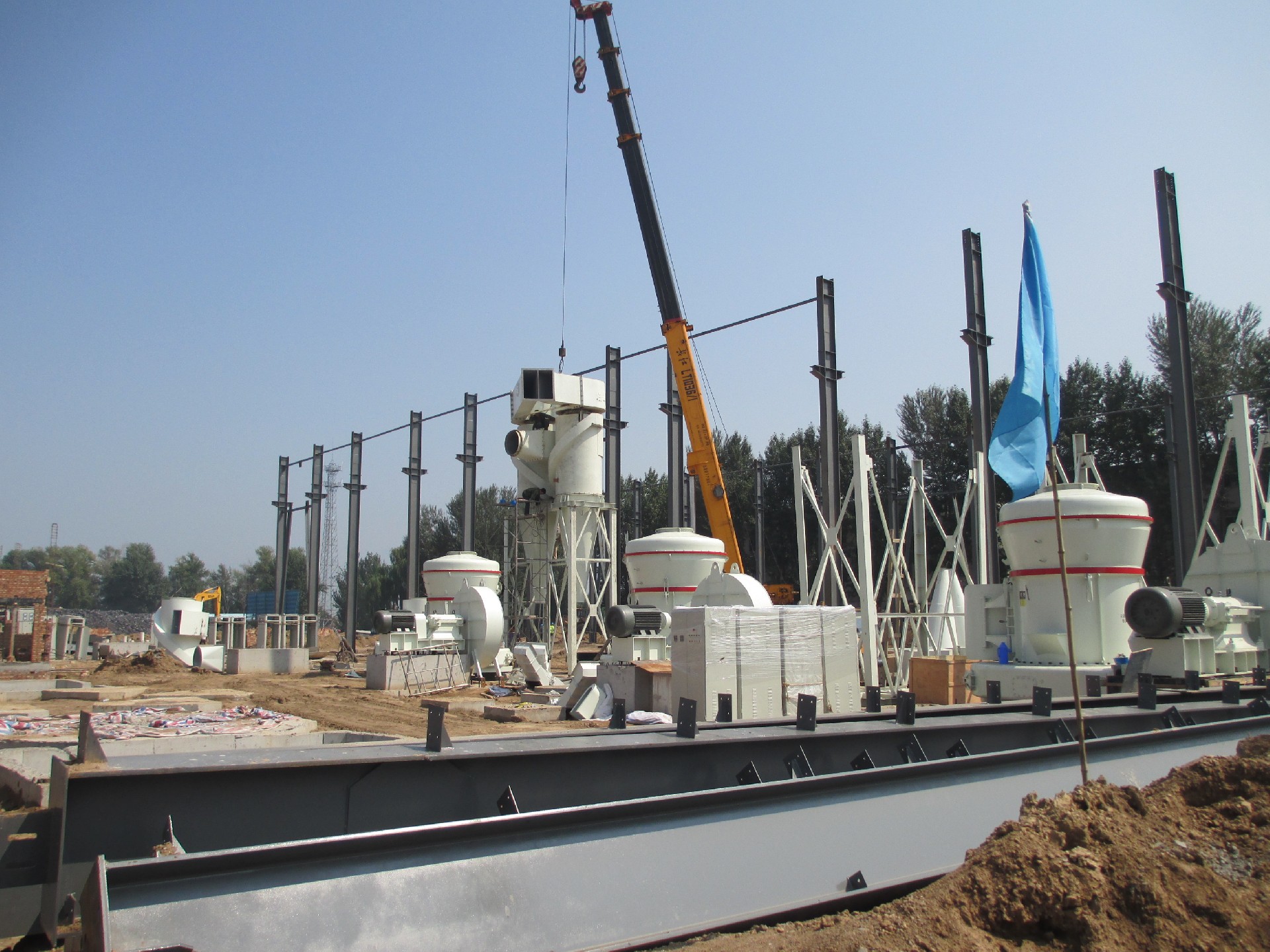

  MTW European Trapezium Mill has a large market share in the grinding industry. Whether bevel gear overall drive, inner automatic thin-oil lubricating system or arc air channel, these proprietary technologies makes machine advanced, humanized and green.

Working principle

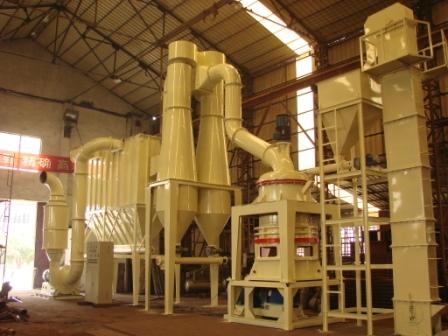

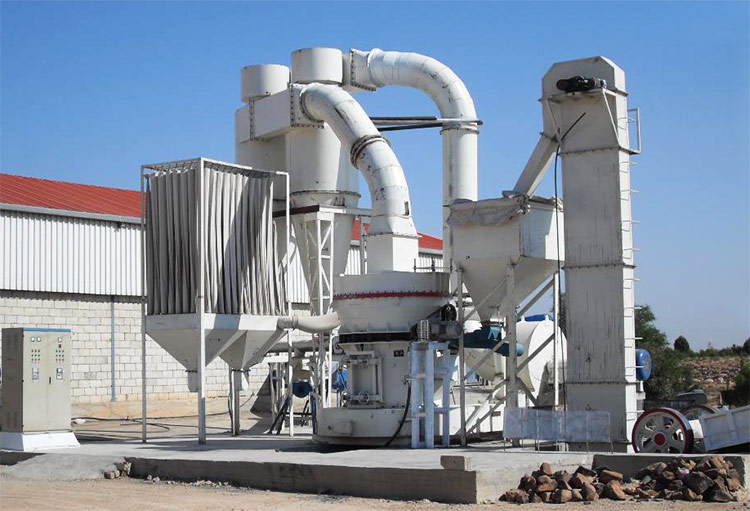

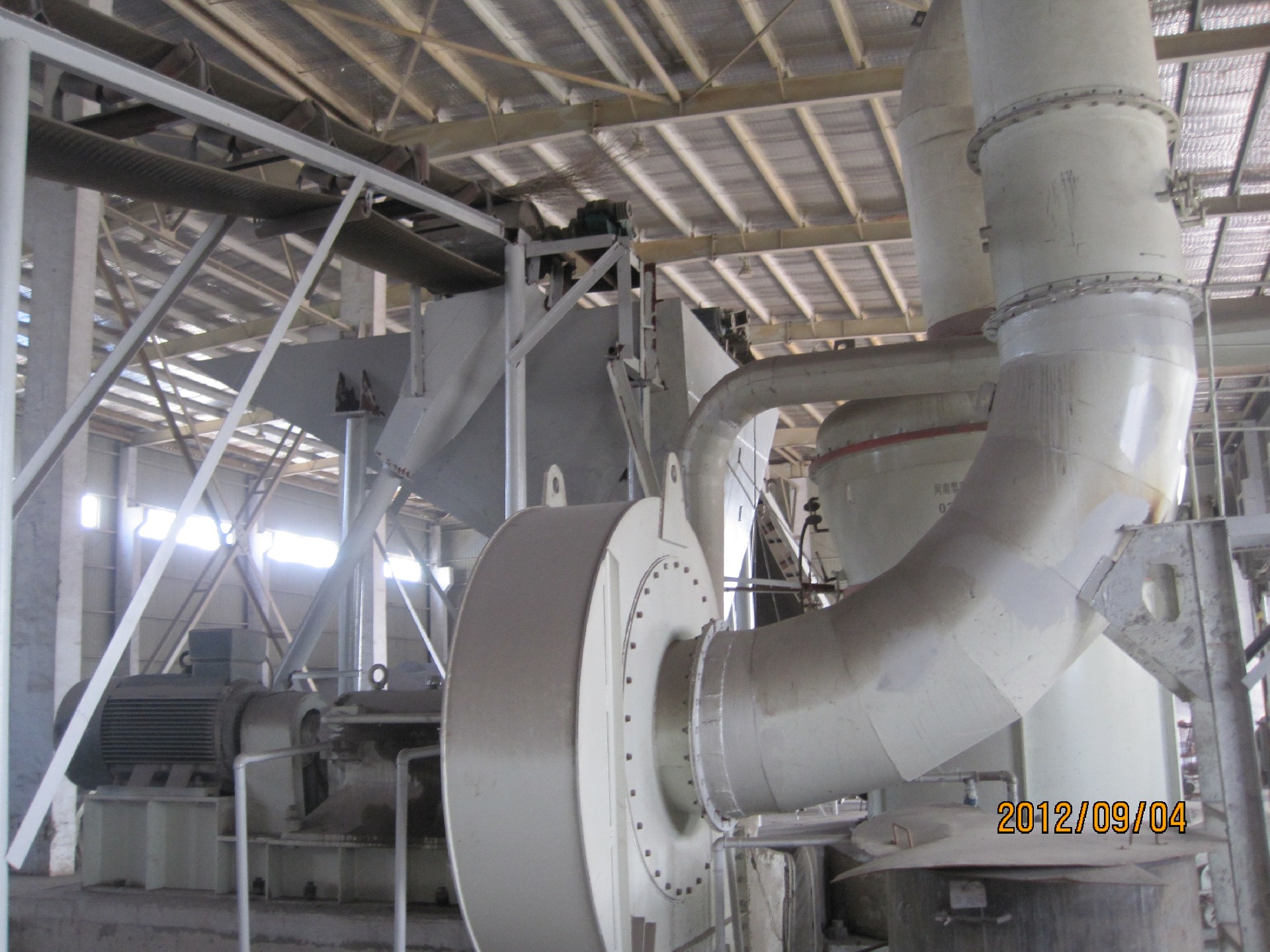

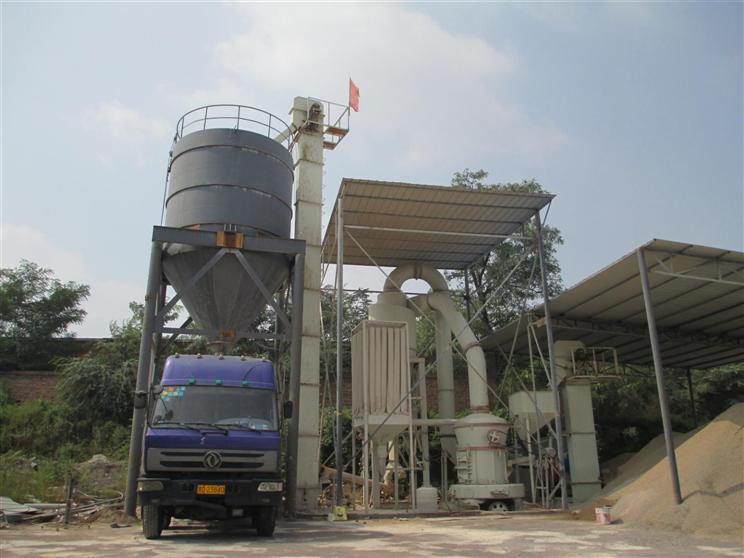

  The system consists of grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc.

       Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system.


Advantage

1. overall transmission of bevel gear with high efficiencyThis machine adopts cone tooth integral transmission, without reducer, with more compact structure, more convenient installation and adjustment, and greatly reduced failure rate; The new technology adopts a new vertical pendulum grinding roller device, which increases the grinding contact area and greatly increases the efficiency.

2. thin oil lubrication and energy savingThe fan drive system and main shaft drive system are lubricated with thin oil, with long oil change cycle, low cost and less maintenance frequency. Built in oil pump, automatic oil supply, reduced transmission resistance, strong power, power saving 1-2 degrees / ton.

3. professional configuration and low energy consumptionBetter fine material separation effect, high powder collection efficiency, small air flow resistance, not easy to block materials, improved fan efficiency, low wear rate and high utilization rate; The non resistance inlet volute and the same resistance arrangement scheme reduce the economic losses caused by the system energy consumption.

4. pay attention to environmental protection and reduce pollutionEquipped with air self circulation system and pulse bag filter, with automatic ash removal device, effectively collect dust, reduce environmental pollution and meet national environmental protection standards


Specifications

Model Specification NameMTW110MTW138MTW175MTW215
Quantity of roller (PCS)4455
Inner diameter of ring (mm)Ф1100Ф1380Ф1750Ф2150
Main shaft speed (rpm)980990740740
Max. Feeding size(mm)30354050
Output fineness(mm)1.6~0.045 The fineness is 0.0381.6~0.045 The fineness is 0.0381.6~0.045 The fineness is 0.0381.6~0.075
Capacity(tph)3.5~106.5~1511~2230-45
Dimension(L×W×H)(mm)8425×5041×864211050×10010×1001012850×10080×998014730×10860×10341
Weight(t)1828.53892



ModelMain mill(KW)Classifier (KW)Blower(KW)Bucket elevator(KW)Jaw crusher hammer crusherFeeder
ModelPower(KW)ModelPower(W)
MTW110557.5553PE250×40015GZ2F0.15
MTW13890221104PE250×40015GZ3F0.2
MTW175160372004PE250×75022GZ4F0.45
MTW2152809031511PC1010110GZ5F0.65
