Impact mobile crushing station

Free consultation and whole process teaching assistance in installation
Buyer Promotion: 50-200$ Coupons (April-June 2021)

throughput : 120-640t/h

application area : ≤50mm

Applicable materials : Limestone, granite, basalt, diabase, andesite, ore tailings, construction waste, etc.


  • CMC

  • CPA

  • CNEX

  • ISO
Get Quotation Send E-mail Send E-mail: tuobaomac@163.com

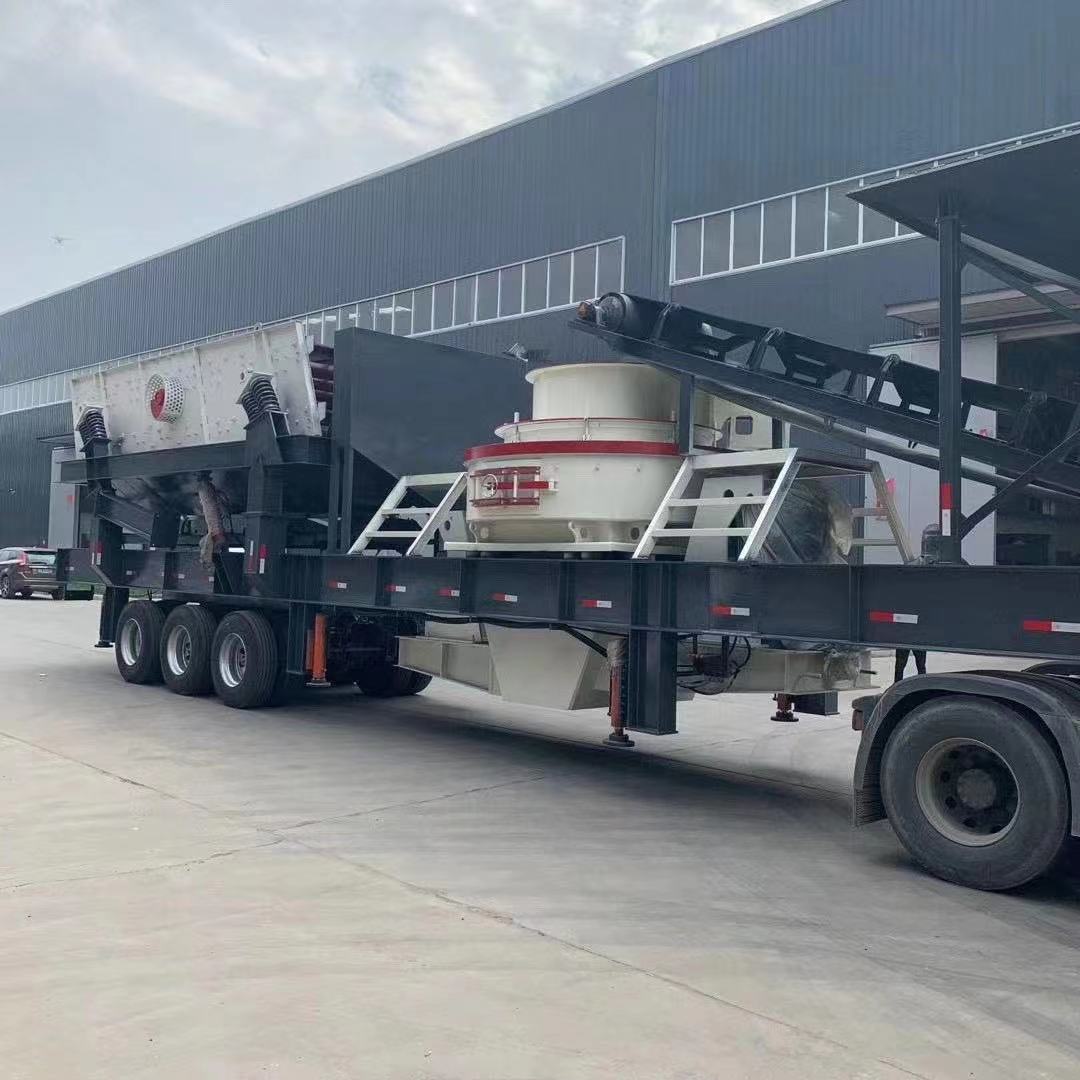

Tire impact mobile crushing station (mobile crushing station) has high vehicle site and small turning radius, which is convenient for ordinary highway driving and driving in rugged and harsh road environment of crushing site area, which saves time for fast entering the construction site. It is conducive to entering the reasonable construction area, eliminating the tedious steel frame structure and foundation construction, and saving a lot of time. According to the material type and product requirements of customers, it can provide more flexible process scheme configuration to meet the requirements of users such as mobile crushing and mobile screening, so as to make the generation organization and logistics transfer more direct and effective.



Working principle

  The working principle of the impact mobile crushing station is the same as that of the impact sand making machine. The material enters the sand making machine from the feeding hopper, and is divided into two parts by the distributor. One part enters the high-speed rotating impeller in the middle of the distributor, and is accelerated rapidly in the impeller. The acceleration can reach hundreds of times of gravity acceleration, and then it is ejected from the three evenly distributed flow channels of the impeller at the speed of 60-70 M / s, First of all, it is the same as material distribution

  A part of the material falling from the impeller is impacted and broken, and then it impacts on the material lining in the vortex branch cavity together. It is rebounded by the material lining, and impacts the top of the whirling cavity obliquely. It changes its movement direction and deflects downward. The material emitted from the impeller channel forms a continuous material curtain. Such a piece of material is subjected to two or more probability impacts in the vortex crushing chamberFriction and grinding crushing. The crushed material is discharged from the lower discharge port. And circulation screening system to form a closed circuit, general circulation three times can be broken into less than 20 mesh. In the whole crushing process, the materials impact each other, not directly contact with the metal components, but with the material lining impact, friction and crushing, which reduces the angular pollution, lengthening machineMechanical wear time. The ingenious self circulation of airflow inside the vortex chamber eliminates dust pollution.



Advantage

1. High performance crusher, large crushing ratio, strong crushing;

2. The shape of crushing cavity can be adjusted, and the application field and range are wide;

3. Feeder and vibrating screen integrated with jaw crusher, cone crusher and vertical impact crusher.

4. The whole unit is installed in one, which has the advantages of convenience and flexibility.

5. Under screen belt conveyor, vibrating screen, crusher integrated vehicle installation.



Specifications

Standard model

Supporting equipment

Supporting equipment

External dimension (mm)

model

Feed size (mm)

Processing capacity (T / h)

S-V7611

3YZK1548

VSI7611

35

120-180

12500 x 2600 x 4300

S-V8518

3YZK1848

VSI8518

40

200-260

14200 x 3000 x 4500

S-V9526

3YZK1860

VSI9526

45

300-380

14500 x 3000 x 4500

S-V1140

3YZK2160

5X1140

50

450-520

15500 x 3100 x 4500

S-5V7615

3YZK1548

5X7615

35

150-280

12500 x 2600 x 4300

S-5V8522

3YZK1848

5X8522

40

240-380

14200 x 3000 x 4500

S-5V9532

3YZK1860

5X9532

45

350-540

14500 x 3000 x 4500

S-5V1145

3YZK2160

5X1145

50

500-640

15500 x 3100 x 4500
