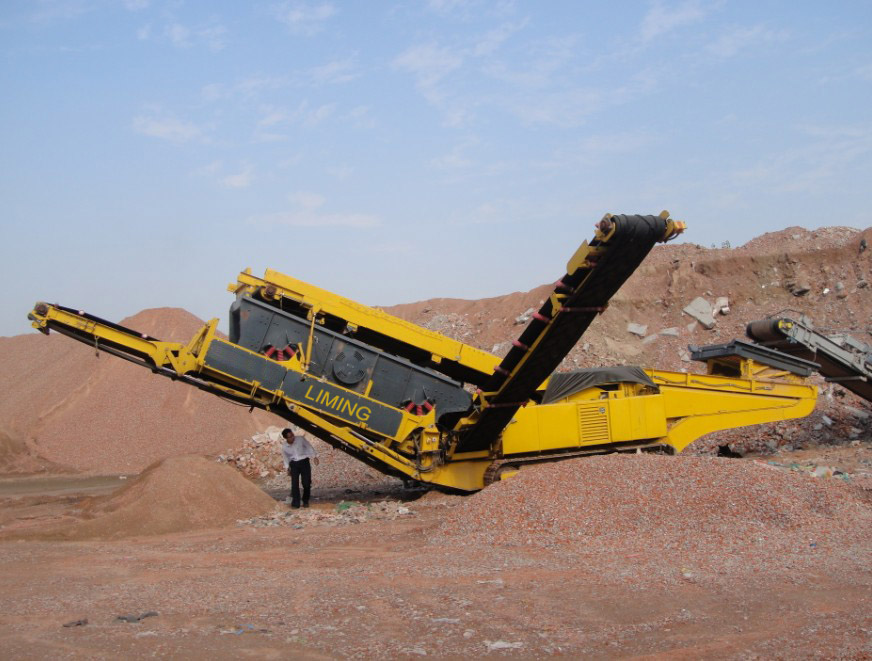

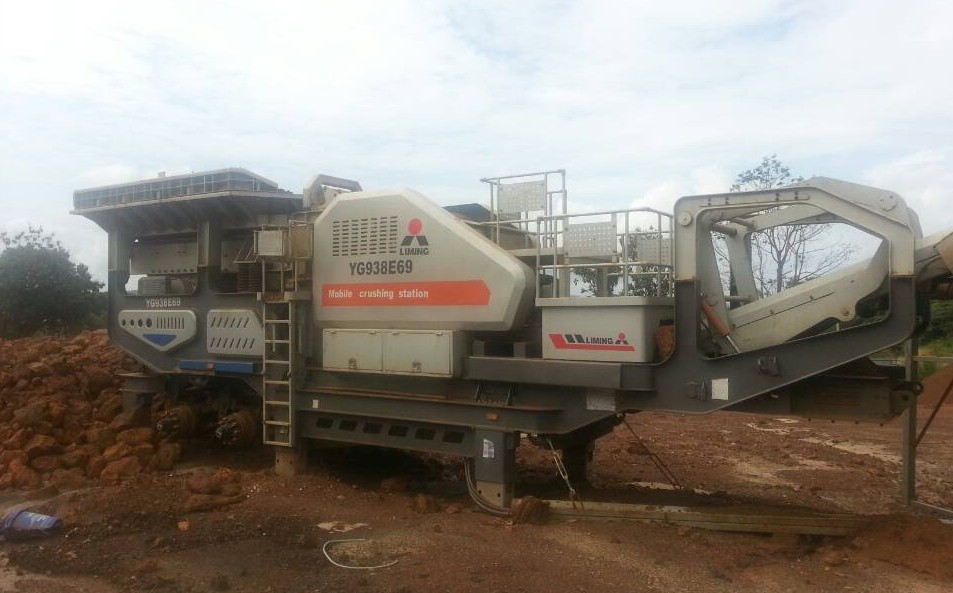

Crawler type screening mobile crushing station
Free consultation and whole process teaching assistance in installation
throughput ：
application area ： ≤75-360mm
Applicable materials ： Construction waste, ore, sandstone, coal, soil, wood, etc.
CMC
CPA
CNEX
ISO

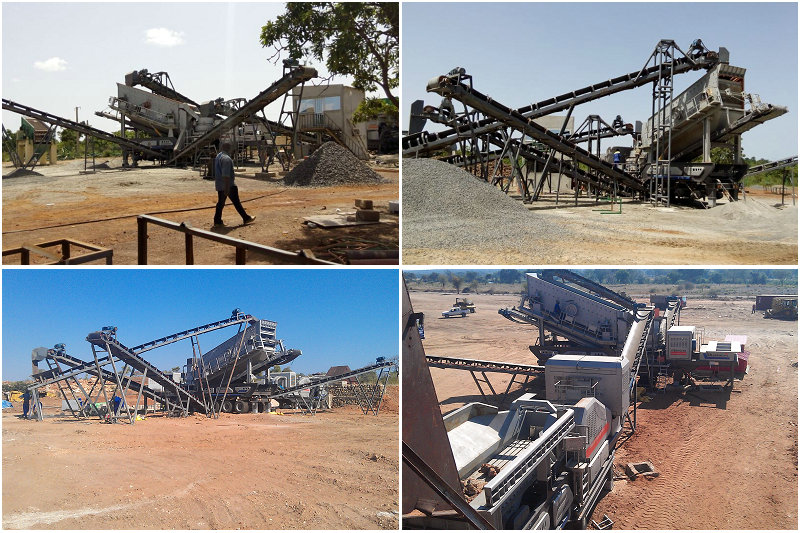

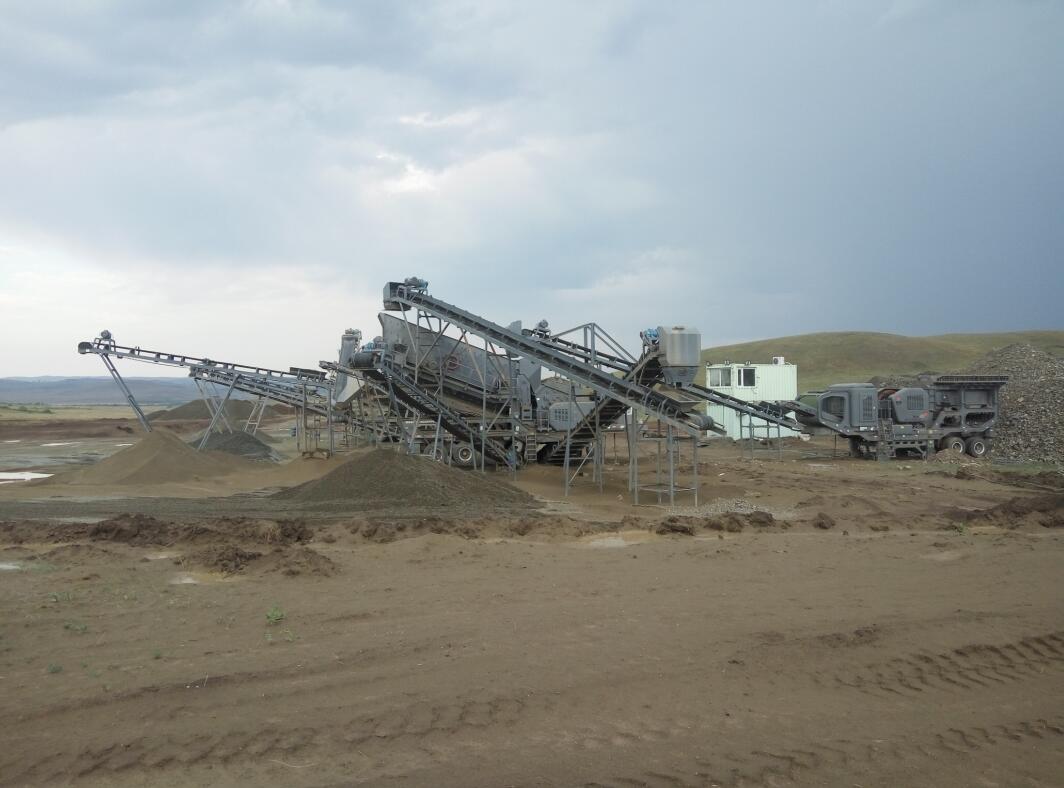

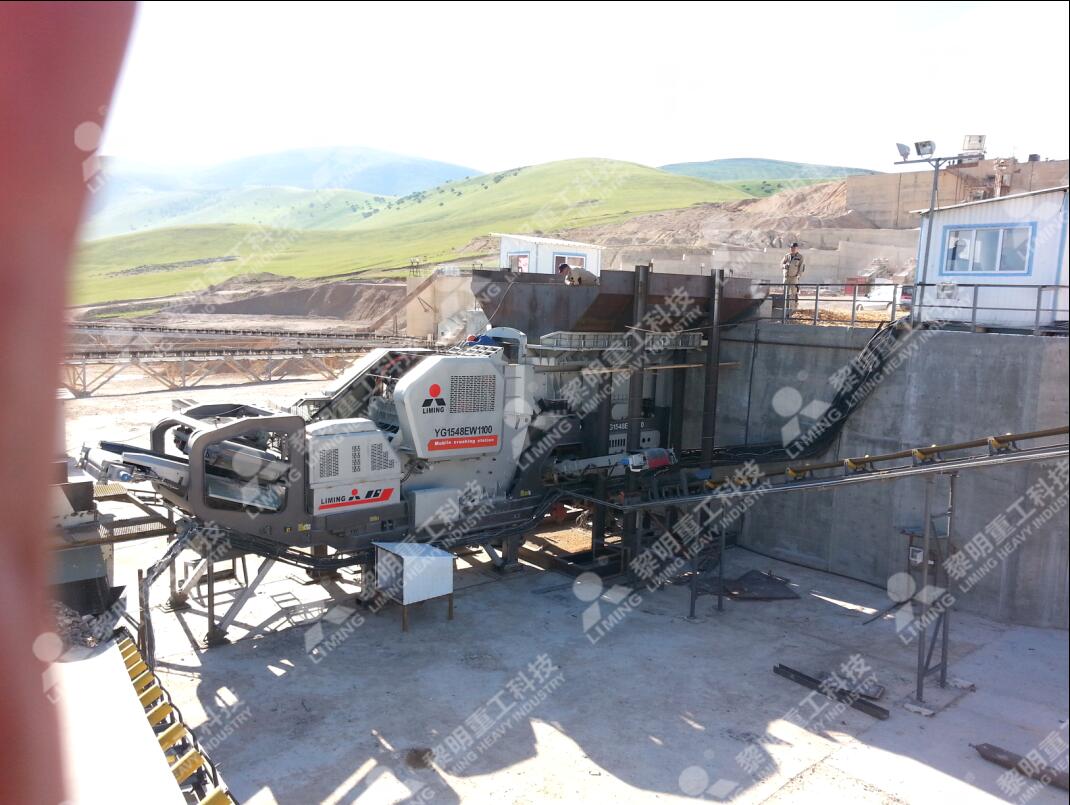

The crawler type screening mobile crushing station is an effective crushing and screening equipment. It can be directly opened to the site. It is convenient for material approaching and processing, transfer operation, high screening efficiency and large output. It is very suitable for operations in complex terrain areas such as narrow sites and urban demolition, especially for construction waste treatment, and can also be used for mineral and hard rock screening, sand and gravel aggregate production. It can fully meet the mobile screening requirements of customers; Users can also select "screening before crushing" or "crushing before screening" according to the actual process requirements of raw materials to meet the product requirements. They can also increase the use of the equipment by adding a return conveyor to realize the conversion between closed circuit and open circuit. The crawler type screening mobile crushing station is a very good choice in terms of performance, quality and cost performance.
Working principle
The materials are conveyed to the crushing equipment for crushing through the belt conveyor. The crushed materials fall into the belt conveyor and are sent out. The sent materials are folded back to the belt conveyor above the vibrating screen through the rotating hopper to transport the materials to the vibrating screen. The qualified materials screened by the vibrating screen are either sent out by the sorting hopper or sent out of the stack by the belt conveyor below the vibrating screen. The unqualified large materials are directly sent back to the crushing chamber of the crusher for further crushingMain structure: it is mainly composed of frame part, eccentric shaft rotating part, crushing chamber working part, safety device, discharge port adjusting device, etc.
1. Frame part: it is composed of side plate, front box assembly, rear box weldment, etc.
2. Eccentric shaft rotating part: mainly composed of movable jaw, eccentric shaft, bearing, bearing seat, belt pulley, etc. It is the main part of transmitting power.
3. Working part of crushing chamber: mainly composed of fixed jaw plate, movable jaw plate, side lining plate, guard plate, etc., it is the working part of crushing materials.
4. Safety device: it is composed of elbow plate, elbow plate seat, spring, spring pull rod, etc. it is a part of the crusher that plays a role of safety under abnormal conditions.
5. Discharge port adjusting device: the device is used to adjust the size of the discharge port and control the discharge particle size. It is mainly composed of adjusting fixed inclined block, adjusting sliding inclined block, jackscrew bolt, sliding block locking pull rod, etc.
Advantage
1. large torque traveling motor large torque traveling motor has mature technology, large driving force and high reliability
2. the well configured and easy to repair control panel can effectively reduce the equipment maintenance time.
3. the system has strong flexibility and high production efficiency. It is a universal body and model, and the feeding unit exchange system and screening unit exchange system
4. process conversion is convenient to meet different needs. Customers can choose "screening before crushing" or "crushing before screening" to meet product requirements
Specifications
| Technical Data//Model | Y3S1848 | Y3S1860 | Y3S2160 | |
| Transportation size (mm) | 10100×2800×4350 | 11100×2820×4350 | 11100×3100×4350 | |
| Weight(t) | 16 | 18 | 19 | |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial | |
| Capacity(T/h) | 50-250 | 60-300 | 80-400 | |
| Belt Conveyor Under Vibrating Screen | B800×7M | B800×8M | B1000×8M | |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 | |
| Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
| Optional | Control box + LCD | Control box + LCD | Control box + LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 |
| Optional | 2 | 2 | 2 | |
| Hydraulic cyclinder | standard | 0 | 0 | 0 |
| optional | 2 | 2 | 2 | |
| Genset (optional) (Kw) | 120 | 120 | 120 | |
Note：Any change of technical data shall not be advised additionally.
