HST Hydraulic Cone Crusher

Free consultation and whole process teaching assistance in installation
Buyer Promotion: 50-200$ Coupons (April-June 2021)

throughput :

application area :

Applicable materials :


  • CMC

  • CPA

  • CNEX

  • ISO
Get Quotation Send E-mail Send E-mail: tuobaomac@163.com

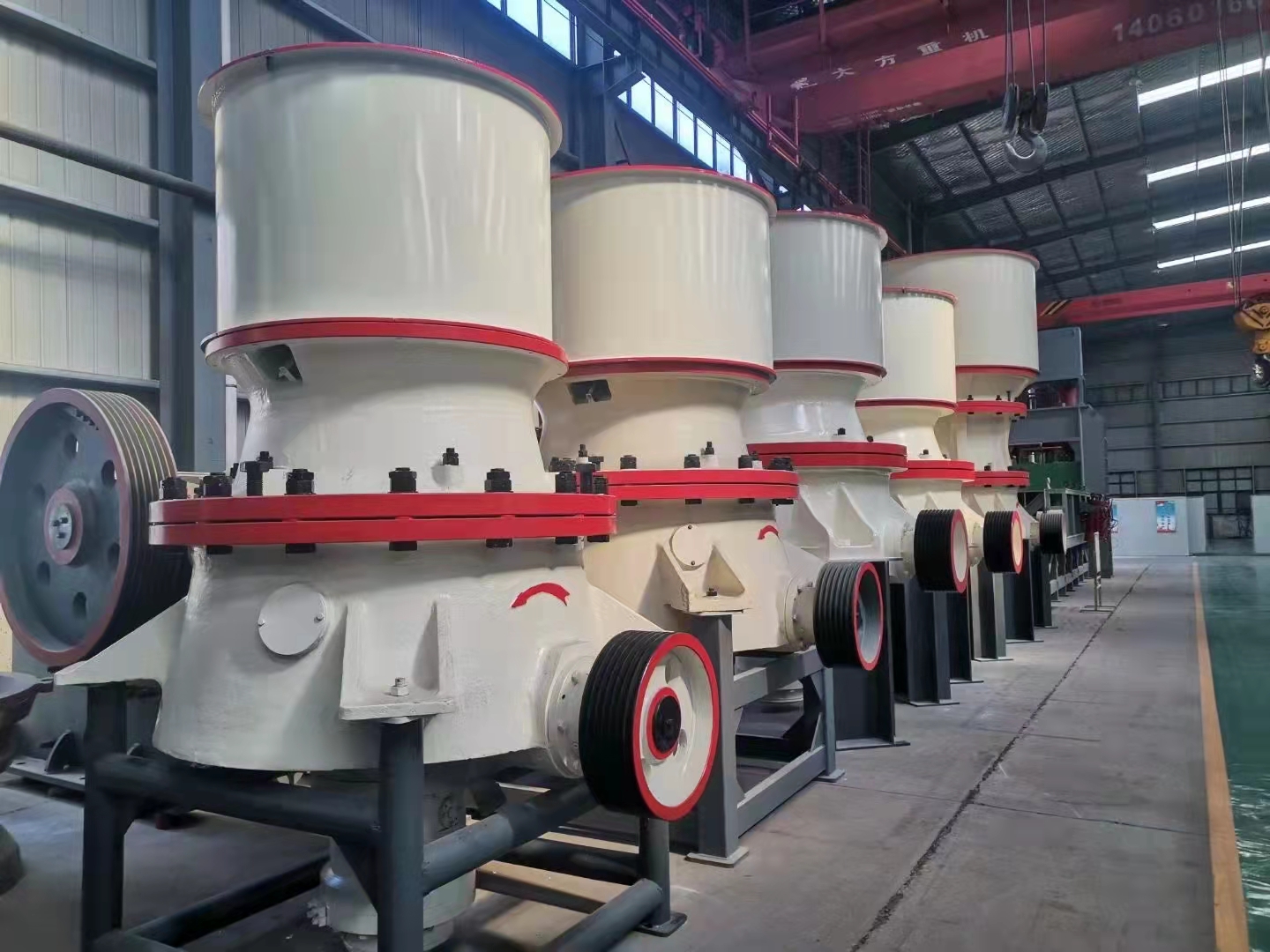

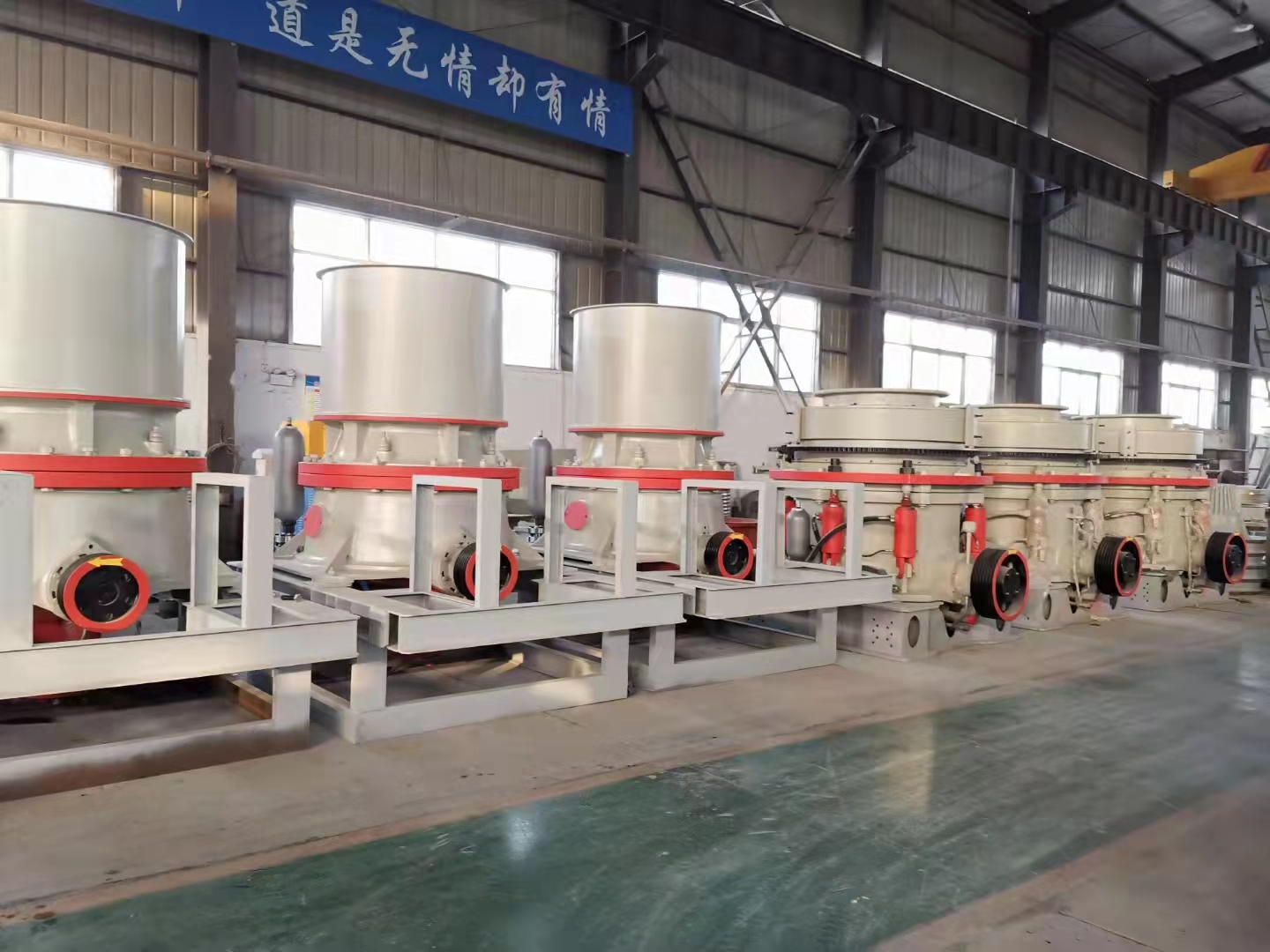

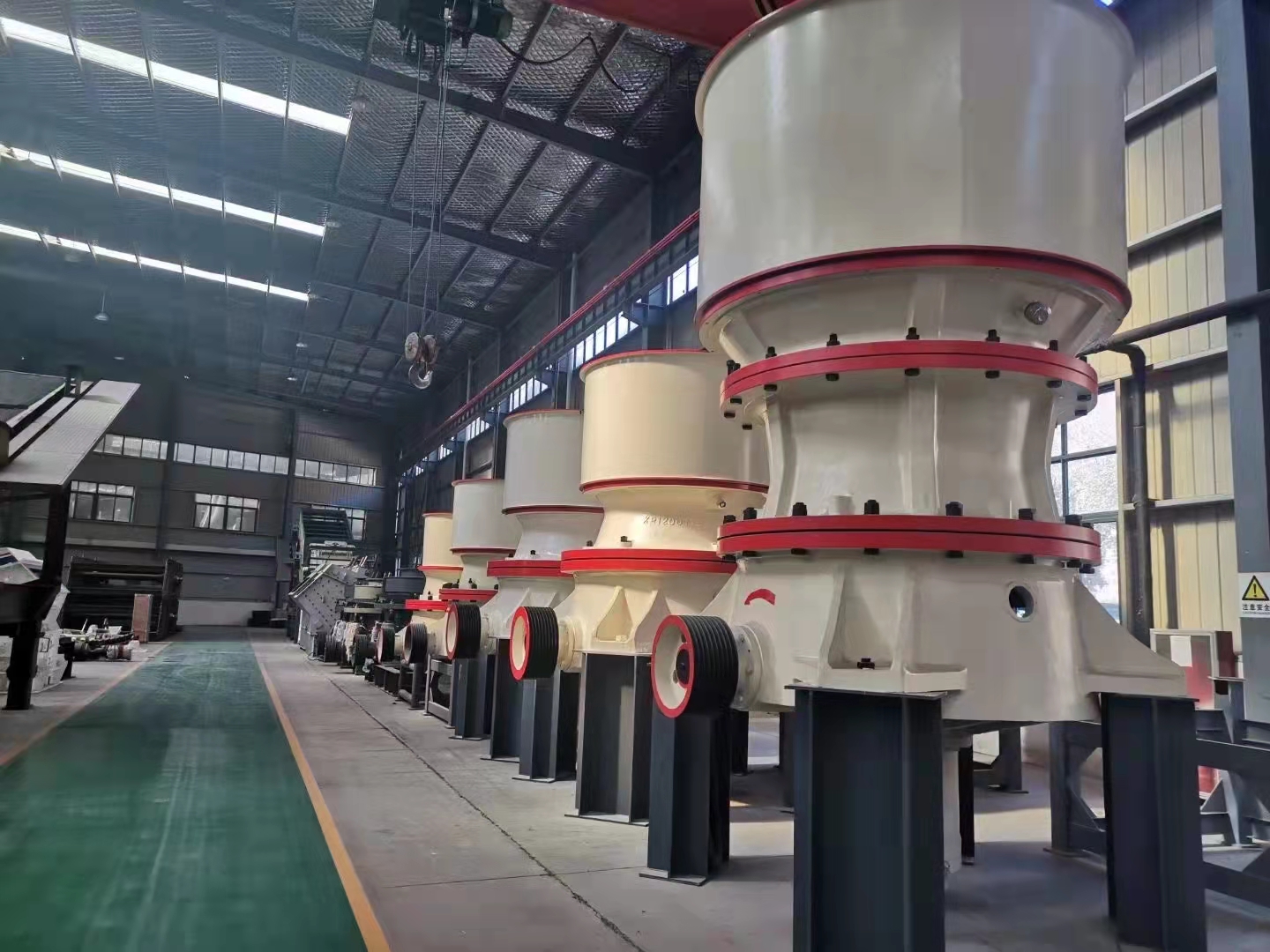

  The HST series hydraulic cone crusher is a high efficiency cone crusher designed by introducing American technology and combining the metal nature on the world market. It is widely used in metal mine, metallurgical, chemistry, construction, cement, sand and stone production industry. It applies to the primary and secondary crushing of various of mines and rocks, the Protodyakonov hardness of which is f=5-16, such as iron ore, nonferrous ore, granite, limestone, quartzite ore, sandstone, pebble and so on.



Working principle

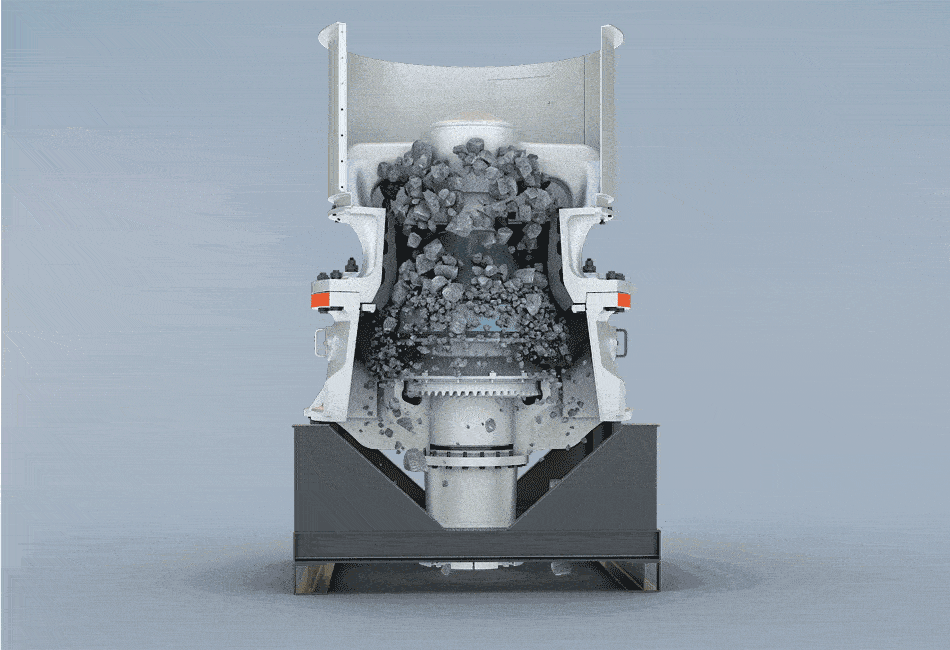

HST series hydraulic cone crusher is mainly composed of six parts: upper frame body, lower frame body, movable cone, eccentric sleeve, transmission part and hydraulic cylinder. The horizontal shaft driven by the motor makes eccentric sleeve rotating via the gear, then the eccentric sleeve drives the movable cone rotating to realize continuous stone extrusion.


Advantage

1.Unique interparticle crushing action

2.Automatic control system in an all-round way

3.Humanized CSS adjusting system

4.Floating main shaft

5.Safe and reliable


Specifications

Model

Cavity

Maximum feed size(mm)

CSS min-max(mm)

Capacity(tph)

Power KW(HP)

Dimension (L×W×H) (mm)

Weight (t)

HST100

S1(Extra Coarse)

240

22-38

85-170

90(125)

1535×1275×2710

9.6

S2(Medium Coarse)

200

19-32

70-130

HST160

S1(Extra Coarse)

360

25-54

120-345

132(175)

2045×1635×3040

15.5

S2(Medium Coarse)

300

22-48

105-305

S3(Coarse)

235

19-48

90-275

HST250

S1(Extra Coarse)

450

35-54

255-605

220(300)

2675×2550×3940

28

S2(Medium Coarse)

400

29-51

215-515

S3(Coarse)

300

25-51

190-490

HST315

S1(Extra Coarse)

560

41-76

335-1050

315(400)

3110×2945×4480

43.5

S2(Medium Coarse)

500

38-70

305-895

Model

Cavity

Maximum feed size(mm)

CSS min-max(mm)

Capacity(tph)

Power KW(HP)

Dimension (L×W×H) (mm)

Weight (t)

HST100

H1(Fine)

135

10-32

45-130

90(125)

1540×1280×2300

7.5

H2(Medium Fine)

65

8-19

35-80

H3(Extra Fine)

38

4-16

27-60

HST160

H1(Fine)

185

13-38

66-210

132(175)

2000×1550×2600

10

H2(Medium Fine)

90

10-32

65-165

H3(Extra Fine)

50

6-25

48-105

HST250

H1(Fine)

215

16-44

110-395

220(300)

2315×1830×2940

19.5

H2(Medium Fine)

110

13-38

115-340

H3(Extra Fine)

70

8-32

90-255

HST315

H1(Fine)

275

16-51

170-665

315(400)

2740×2200×3590

28.5

H2(Medium Fine)

135

16-38

190-505

H3(Extra Fine)

65

13-22

205-320

HST560

H1(Fine)

300

22-70

448-1331

560(750)

3300×2600×4463

51

H2(Medium Fine)

155

19-70

400-1098

H3(Extra Fine)

80

10-44

280-669

HST750

H1(Fine)

270

25-70

480-2500

630(850)

3800×3100×5305

80

H2(Medium Fine)

195

22-70

552-1115

H3(Extra Fine)

85

10-51

364-790
