Counterattack breaking mobile crushing station
Free consultation and whole process teaching assistance in installation
throughput ： 90-400t/h
application area ： ≤52-360mm
Applicable materials ： Construction waste, granite, basalt, river pebble, limestone, quartzite, diabase, gold ore, iron ore, etc.
CMC
CPA
CNEX
ISO

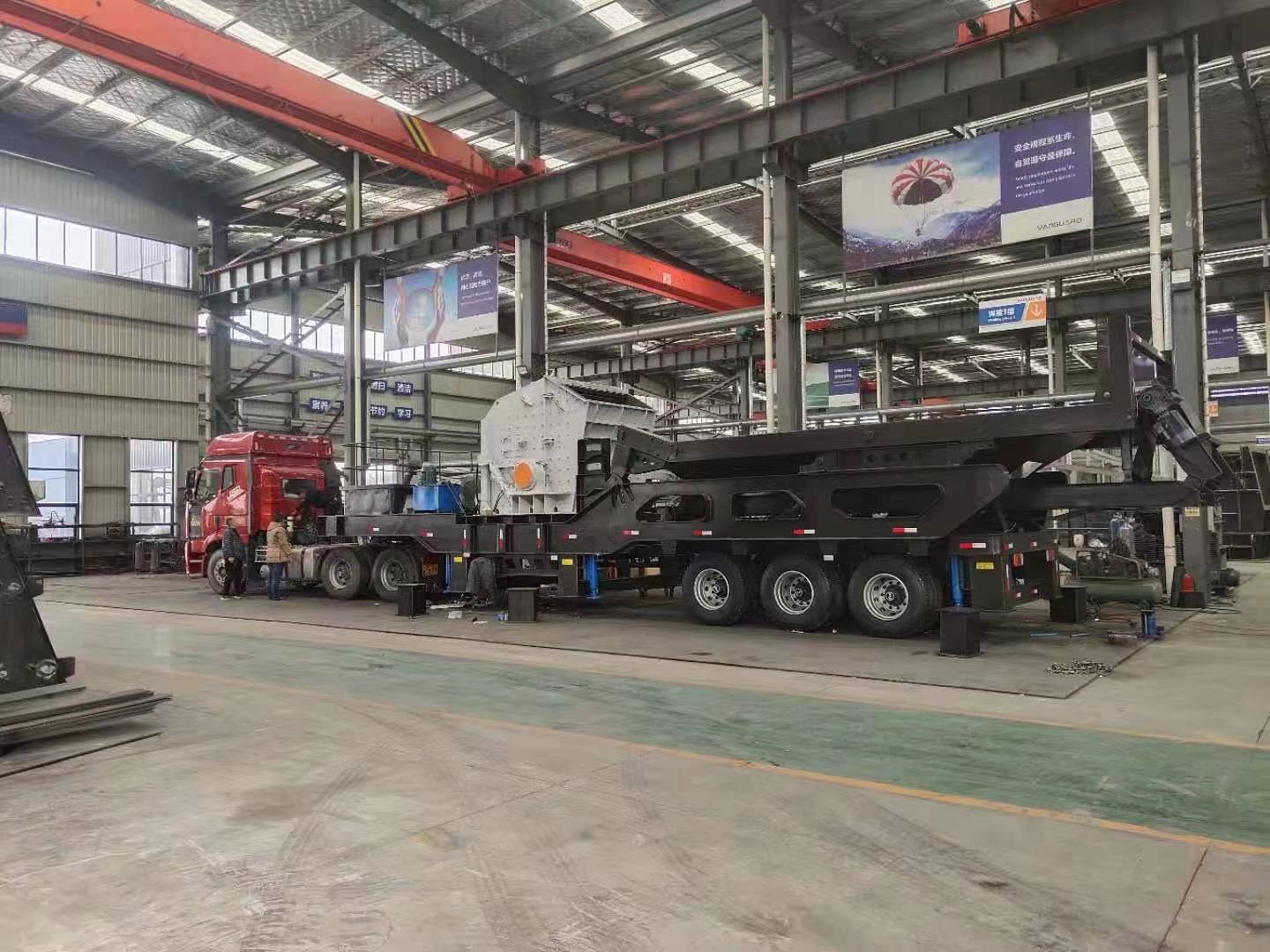

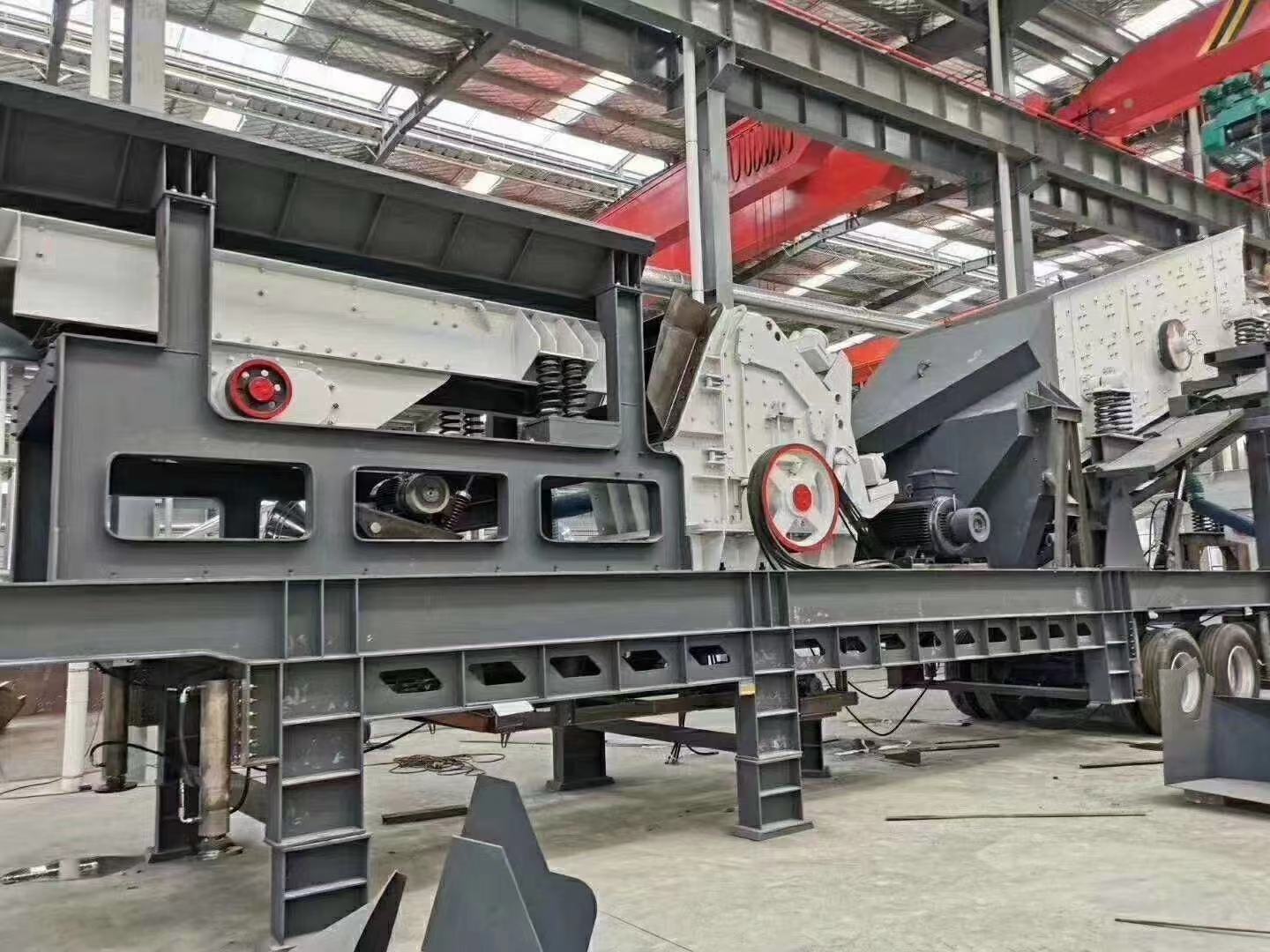

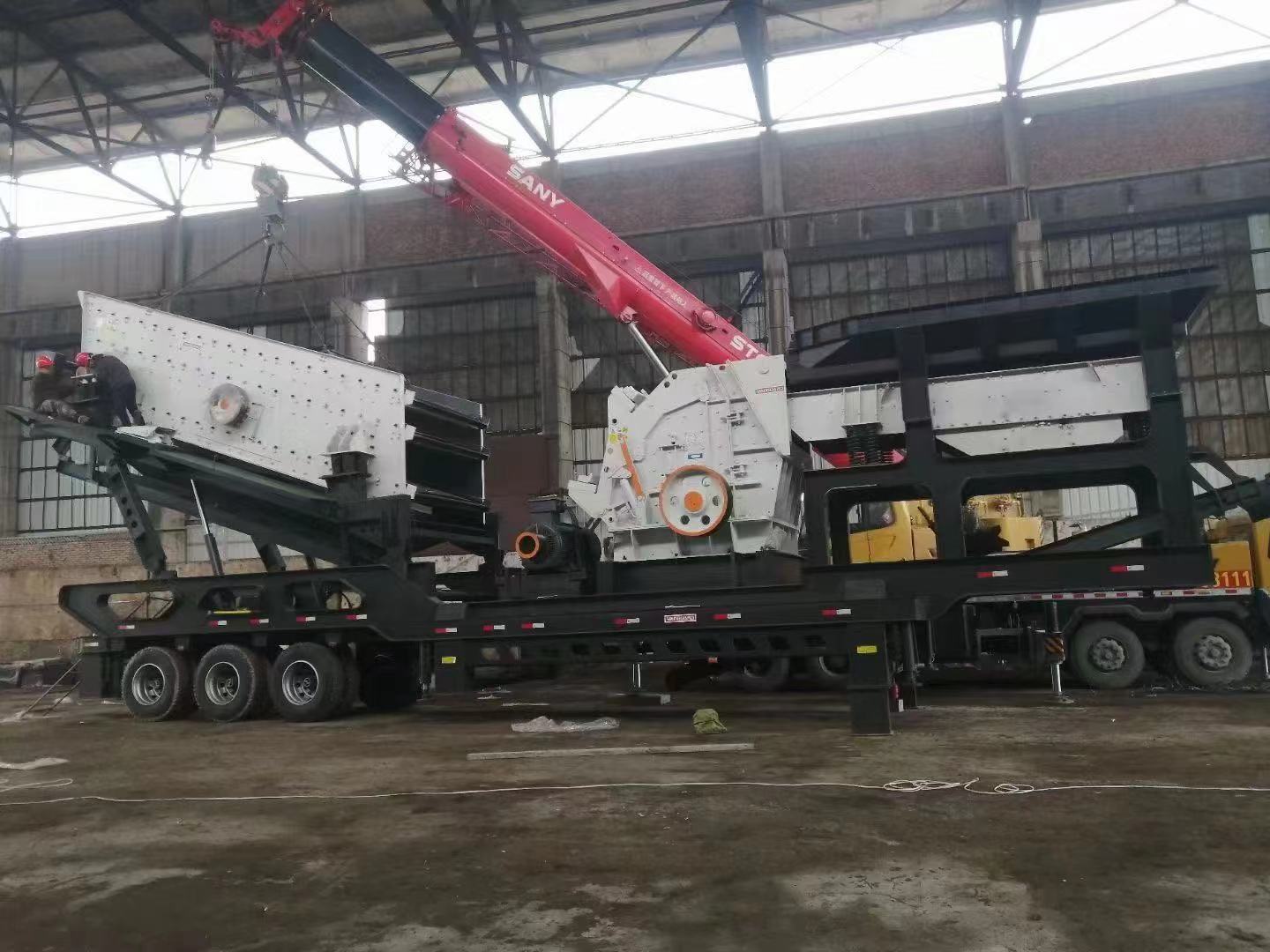

The mobile crushing station is composed of feeder, impact crusher, belt conveyor and other integrated mobile crushing equipment. It adopts the latest manufacturing technology, selects high-quality high chromium plate hammer and wear-resistant impact lining plate, which has a large crushing ratio. In addition, the impact crusher has the characteristics of high-quality grain shape, which makes the mobile crusher set have a wider range of use. It is especially suitable for small crushing site construction waste treatment, construction waste crushing and so on
Working principle
The materials are evenly transported to the jaw crusher by the feeder, and the materials after the initial breaking of the jaw crusher are sent to the impact crusher for secondary crushing through the conveyor. The crushed materials are screened by the vibrating screen, and the materials meeting the crushing requirements are exported by the conveyor. The materials that do not meet the requirements are broken again by the impact crusher. The whole production line of crawler jaw crusher + impact crusher mobile station is connected The circular vibrating screen forms a closed-circuit system to realize the circular crushing of materials. The finished materials are output by the conveyor for continuous crushing operation.
Advantage
1. Light weight, small size, especially suitable for narrow site work.
2. Low fuel consumption, low noise, stable and reliable performance.
3. The chassis adopts crawler type all steel ship type structure, with high strength, low grounding ratio and good performance. It has outstanding capability for mountainous and wetland.
4. The hydraulic drive system is adopted, and the mature high torque walking motor has large driving force and high stability. The full power variable opening hydraulic system is adopted for the walking system.
5. Convenient transportation, crawler walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of applications.
Specifications
SMC Impact crusher | SMC1010PFS | SMC1210PFS | SMC1214PFS | |
Transport size | ||||
Length(mm) | 10800 | 12200 | 12500 | |
Width(mm) | 2480 | 2743 | 2900 | |
Height(mm) | 4170 | 4200 | 4200 | |
Alex weight(kg) | 15900 | 17200 | 22100 | |
King pin weight(kg) | 11300 | 14300 | 17500 | |
Impact crusher | ||||
Model | PF1010 | PF1210 | PF1214 | |
Feed opening(mm) | 400X1080 | 400X1080 | 400X1080 | |
Vibrating screen | Vibrating screen | |||
Model | 4YK1235 | 4YK1545 | 4YK1548 | |
