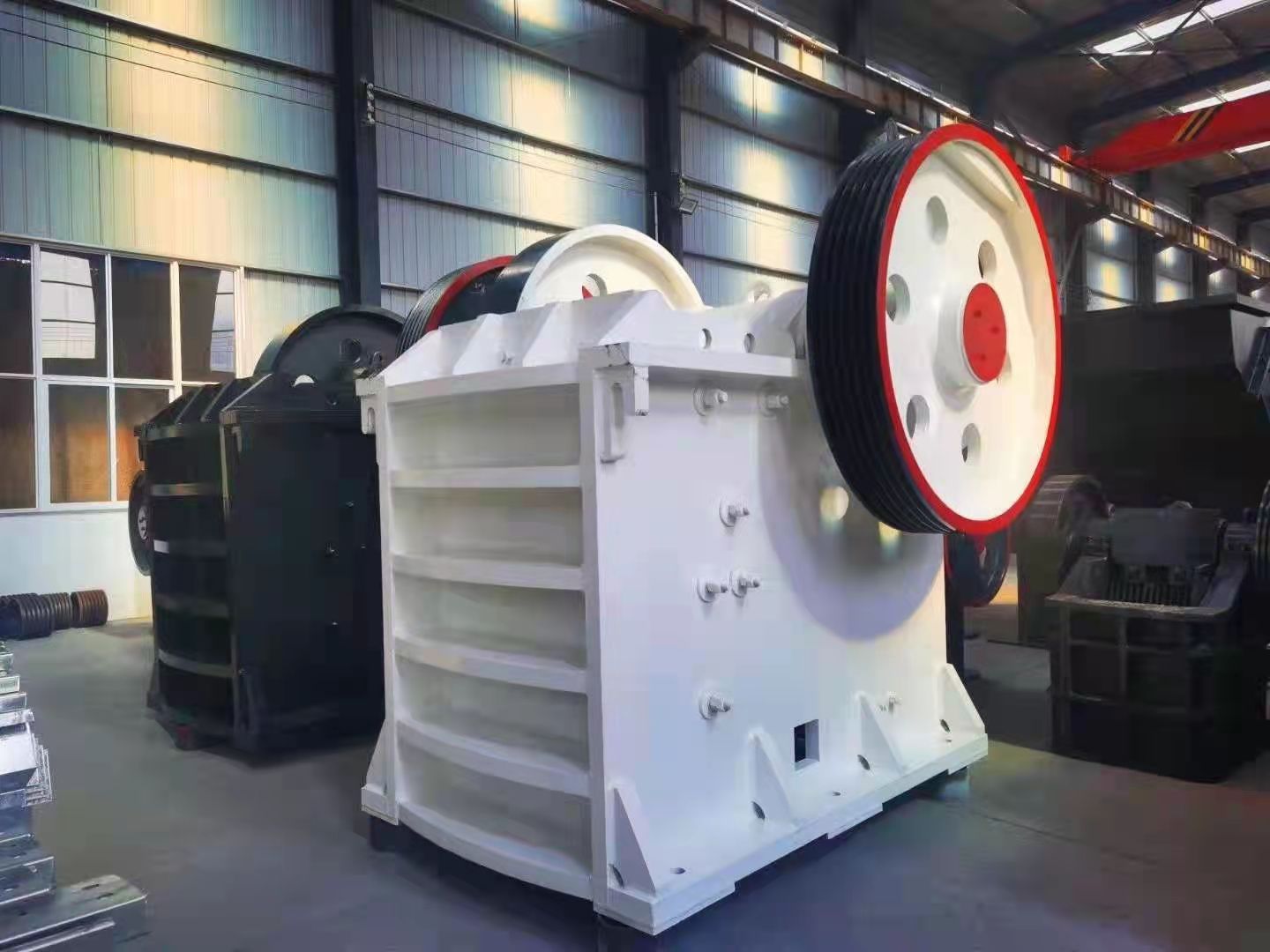

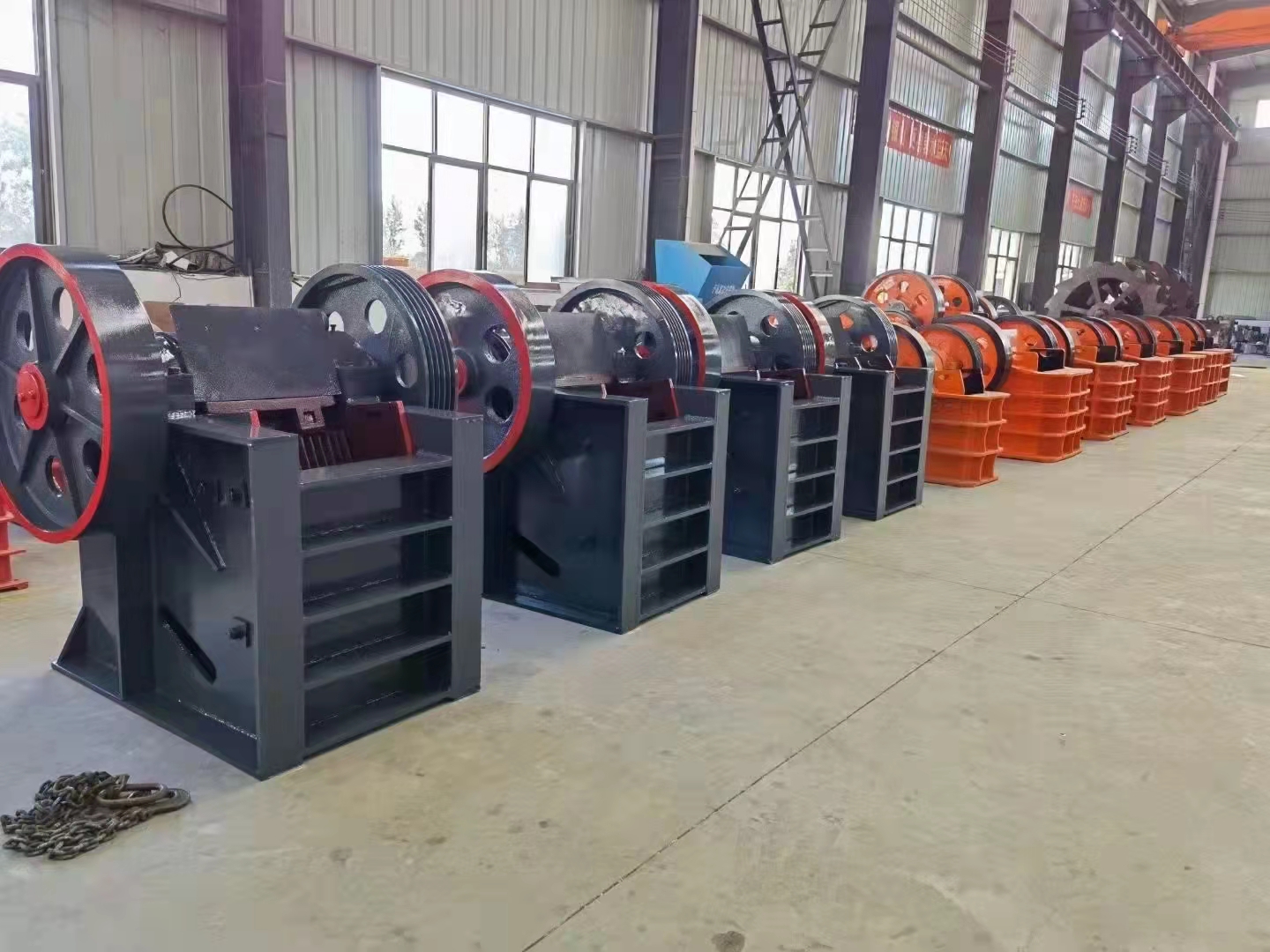

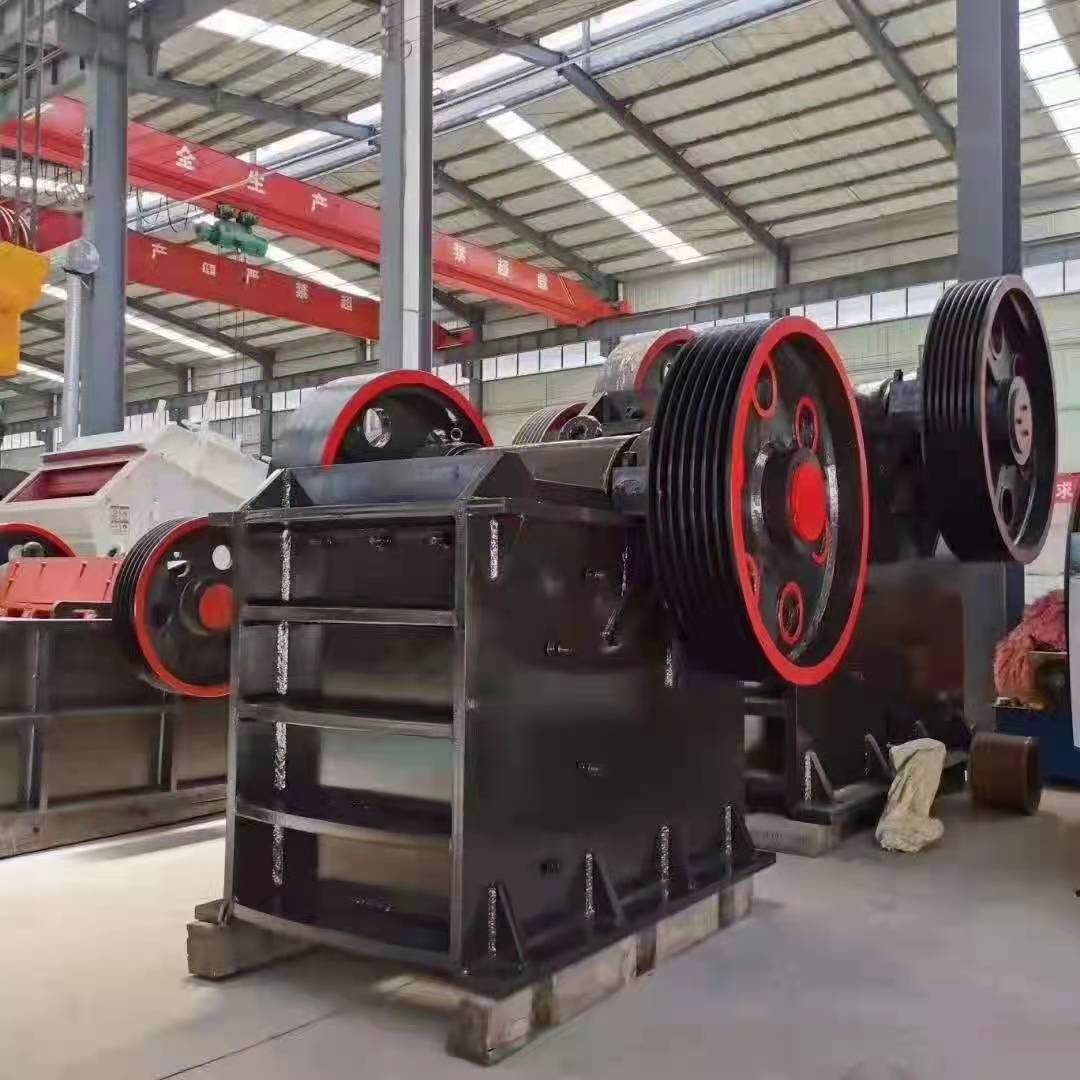

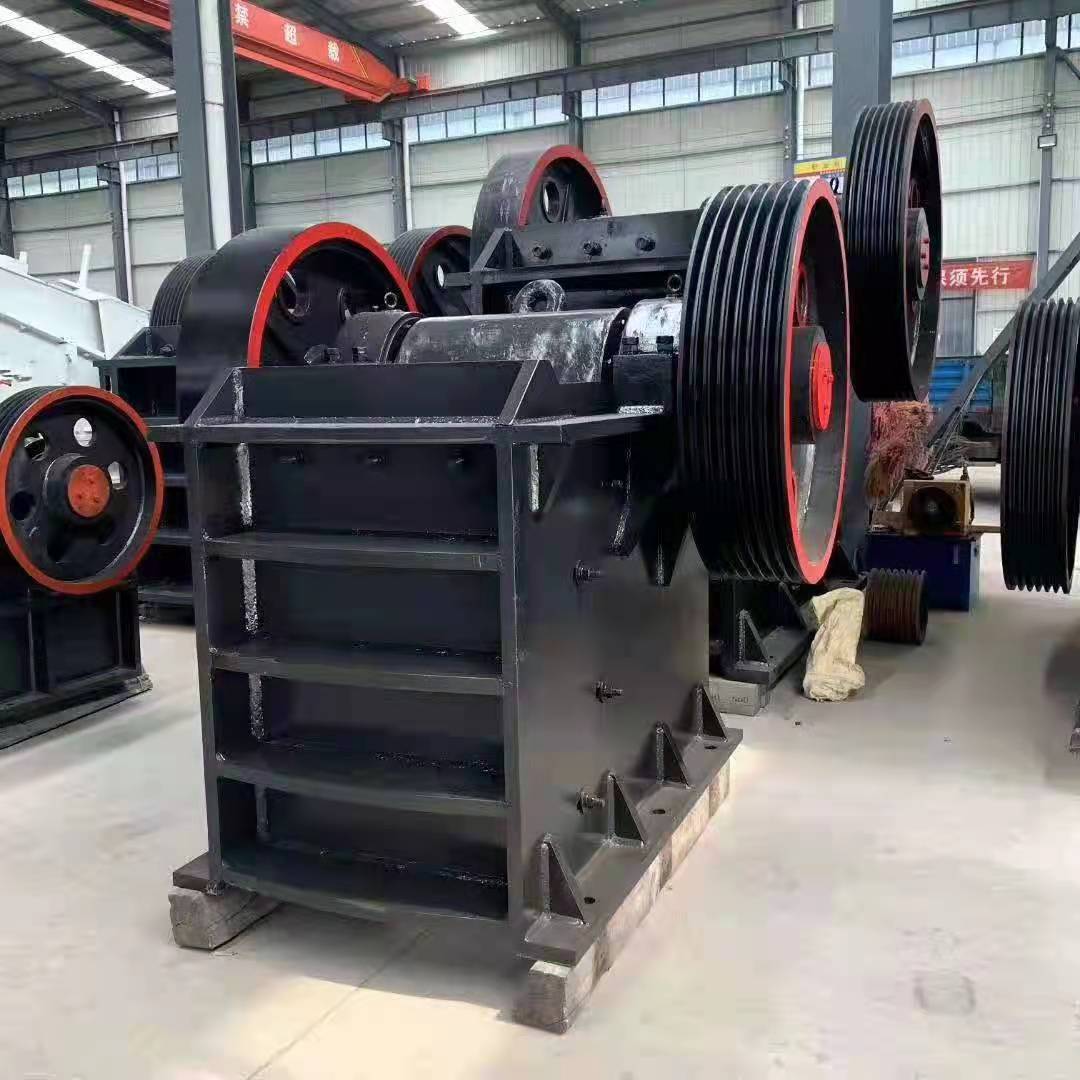

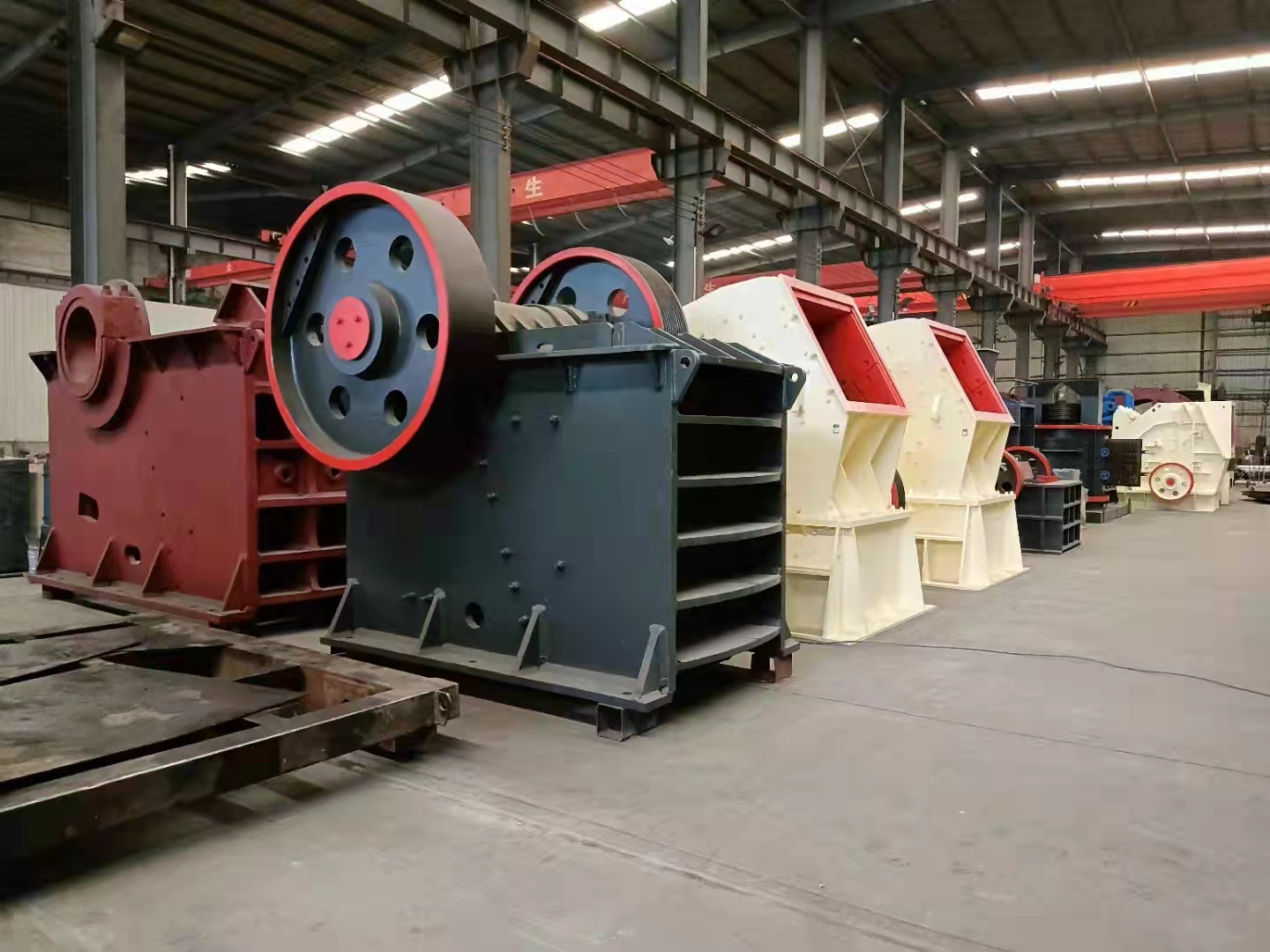

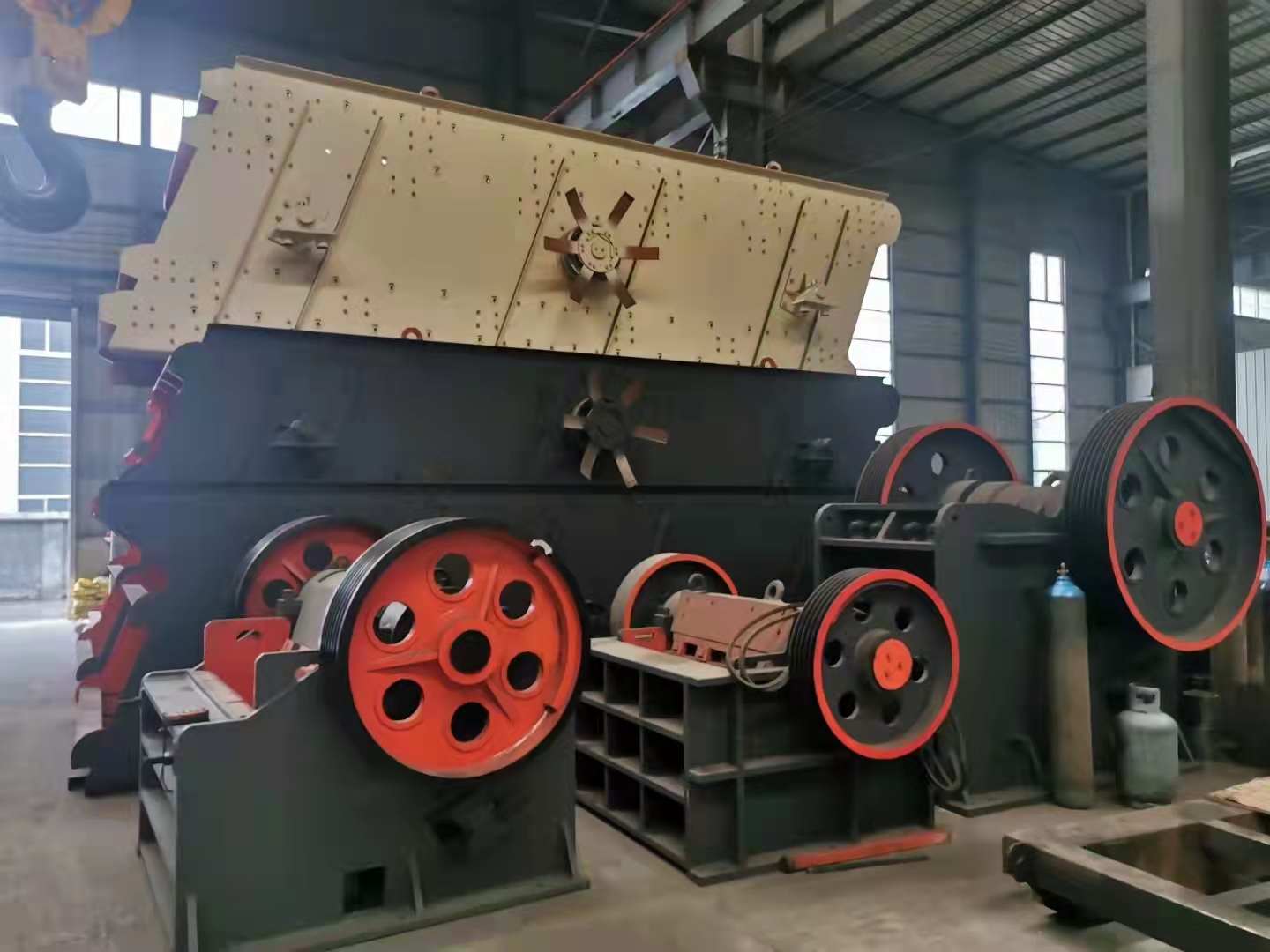

Jaw Crusher
throughput : 1-1000t/h
application area : ≤1020mm
Applicable materials : limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, pebble, pozzolana, Iron ore, copper ore, gold ore, manganese ore, etc.
CMC
CPA
CNEX
ISO
Jaw crusher is widely used in ore crushing, building aggregate processing and other industries. With the continuous development of production technology, advanced manufacturing technology, high-quality production materials, further consolidate the important position of jaw crusher in the field of mining machinery.
Working principle
The motor transmits power through belt, drives the moving jaw to do
periodic motion towards the fixed jaw by the eccentric shaft. The angle between
toggle plate and moving jaw plate increases when moving jaw moves . So the
moving jaw moves towards the fixed jaw. The stuff will be crushed in this
process. The angle between toggle plate and moving jaw decreases when moving jaw
moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the
final crushed stuff will be discharged from the outlet.
Advantage
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a
wide range through the stuffing of shim, thus it can meet various requirements
of customers.
3. Lubrication system of it is safe and reliable, which boasts an easy and
convenient maintenance.
4. Simple structure, reliable performance, low maintenance cost.
5. Little dust and low noise.
Specifications
Model | Feed opening (mm) | Max. Feeding Size (mm) | Adjustable Discharge opening (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
PE250×400 | 250X400 | 200 | 20-60 | 5-20 | 15(20) | 1150×1275×1240 | 2.8 |
PE250x1000 | 250X1000 | 210 | 15-50 | 15-50 | 30(40) | 2790x2670x1380 | 6.5 |
PE400×600 | 400X600 | 350 | 40-100 | 15-60 | 30(40) | 1700×1732×1653 | 6.5 |
PE500×750 | 500X750 | 425 | 50-100 | 50-100 | 55(75) | 2035×1921×2000 | 10.3 |
PE600×900 | 600X900 | 500 | 65-160 | 60-130 | 75(100) | 2290×2206×2370 | 16 |
PE750×1060 | 750X1060 | 630 | 80-140 | 110-250 | 110(150) | 2620×2302×3110 | 27 |
PE900×1200 | 900X1200 | 750 | 100-200 | 160-380 | 130(175) | 3789×2826×3025 | 46.5 |
PE1000×1200 | 1000X1200 | 850 | 200-300 | 315-550 | 130(175) | 3889×2826×3025 | 56 |
PE1200×1500 | 1200X1500 | 1000 | 150-350 | 400-800 | 200(270) | 4930X3148X3560 | 88 |
